Solutions / AC Ultra

80A AC Ultra
Charging.

The dual-port AC charger built for always-on operation. 19.2 kW per port, both ports at once.

Get quote Technical docs
Specifications

The system,
at a glance.

Power output
19.2 kW per port (240V AC × 80A)
Output amperage
Adjustable 6A to 80A per port
Input voltage
208V ±15%; 240V ±15%, 60Hz
Connector
SAE J1772 (16.4 ft or 25 ft cable)
Enclosure rating
NEMA 3R, -40°F to 131°F
Certifications
UL 2231, UL 2594, CSA C22.2, Energy Star
19.2 kW per port
2 ports simultaneous charging
80A maximum amperage
75 mi range per 60 min
Built for the operation

Four principles. One charger.

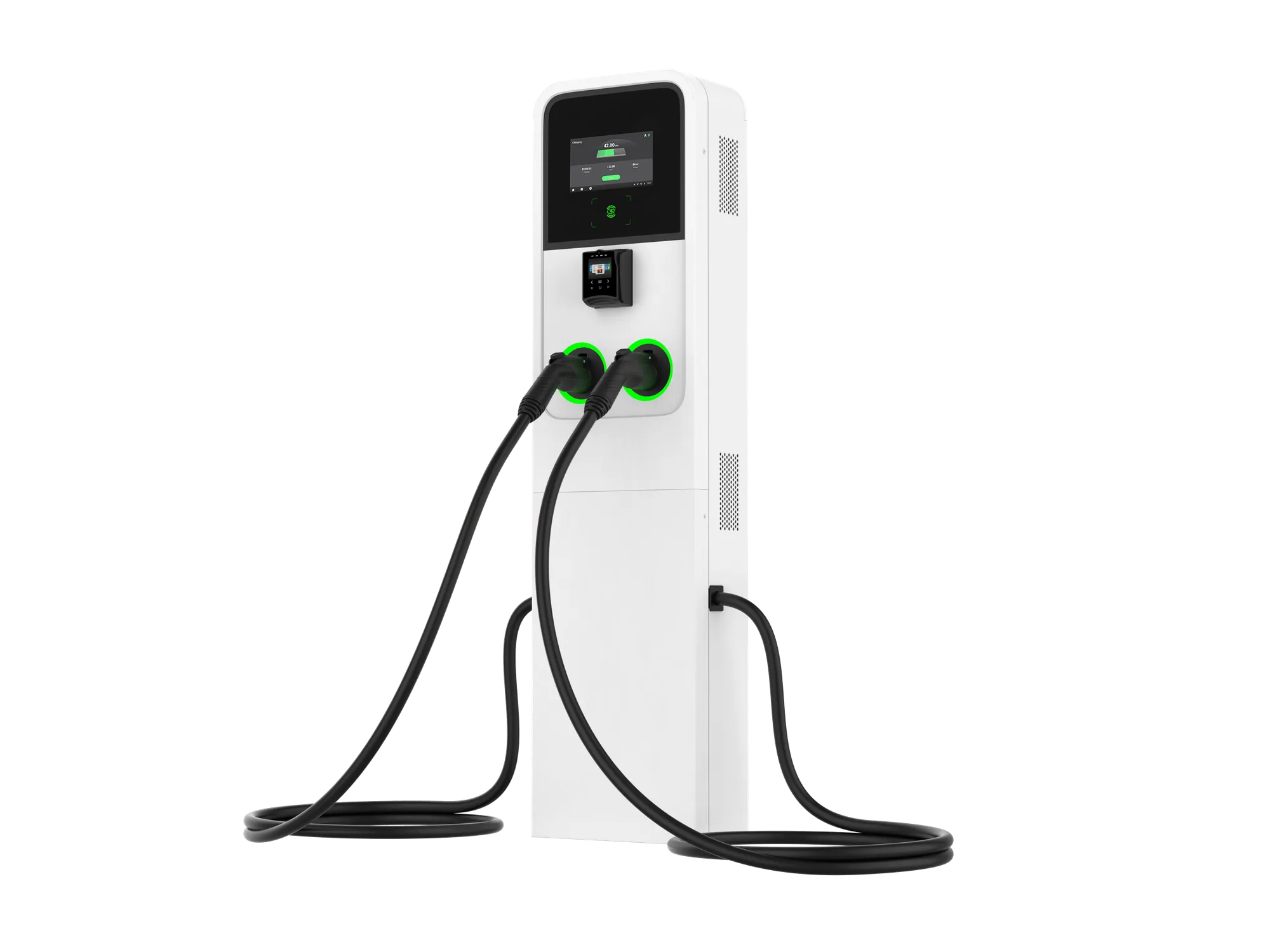

  • 19.2 kW per port. Both ports at once.
    Powerful

    19.2 kW per port. Both ports at once.

    Charges two vehicles simultaneously at full output. 75 miles of range in 60 minutes per vehicle, with no per-port speed penalty.

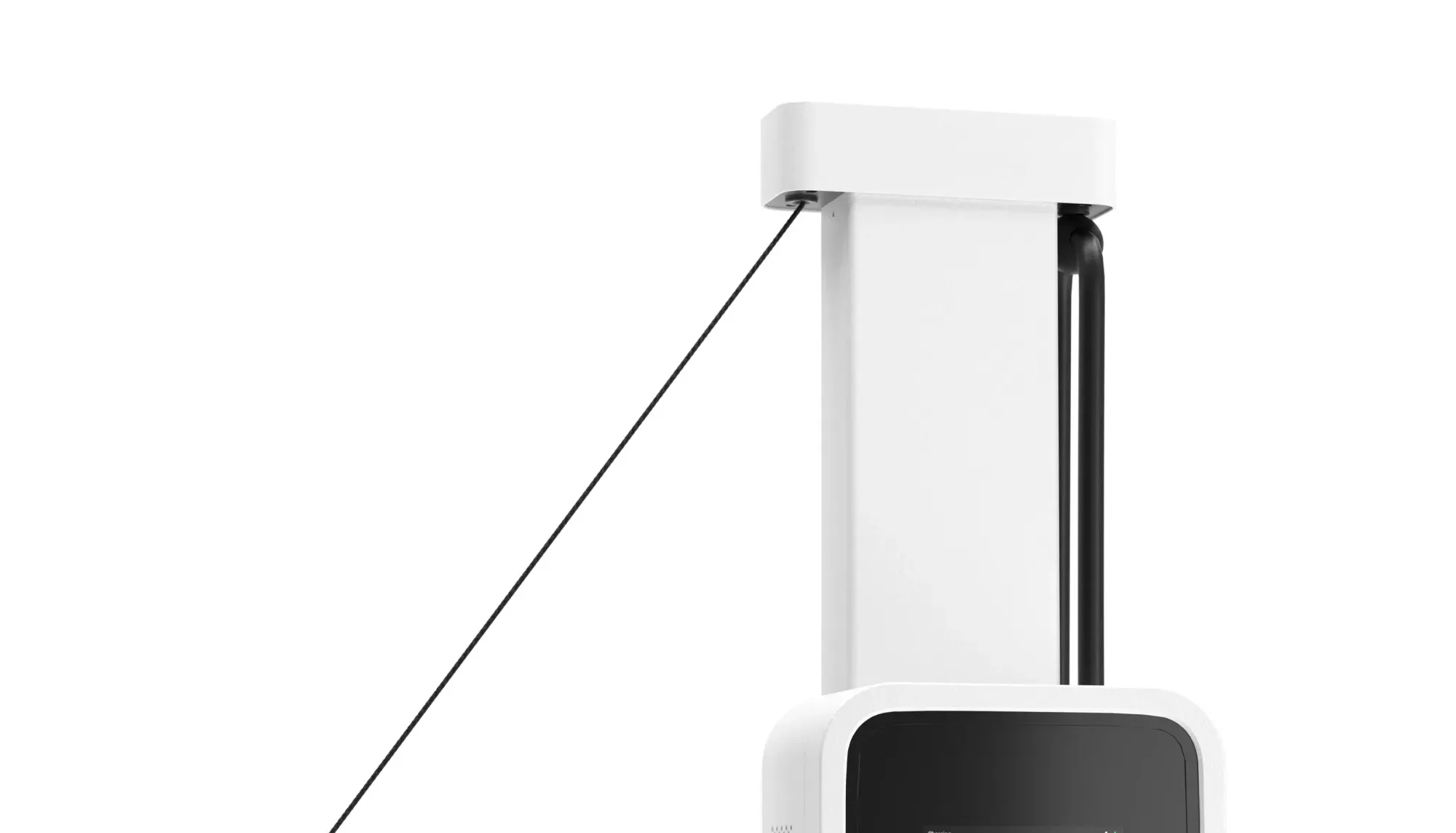

  • Dynamic Load Balancing across ports.
    Smart

    Dynamic Load Balancing across ports.

    Share power according to demand. Adjust output from 6A to 80A per port via mobile app or DIP switch. OCPP 1.6j (upgradeable to 2.0.1) for any back-end.

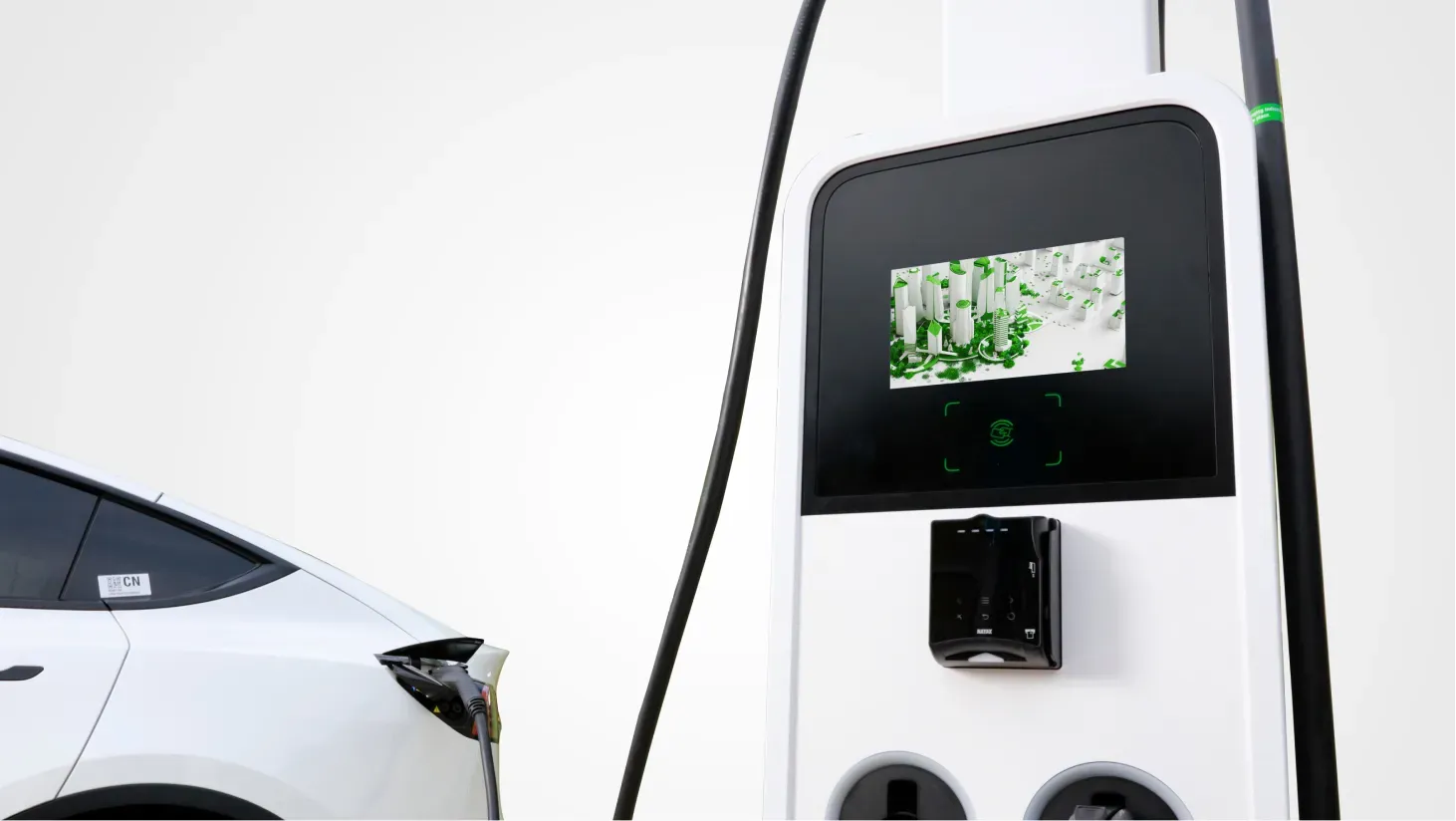

  • Built for Real Operating Conditions.
    Durable

    Built for Real Operating Conditions.

    NEMA 3R rated enclosure. Operating range -40°F to 131°F. Integrated surge protection. Cable management system protects against cable damage and wear.

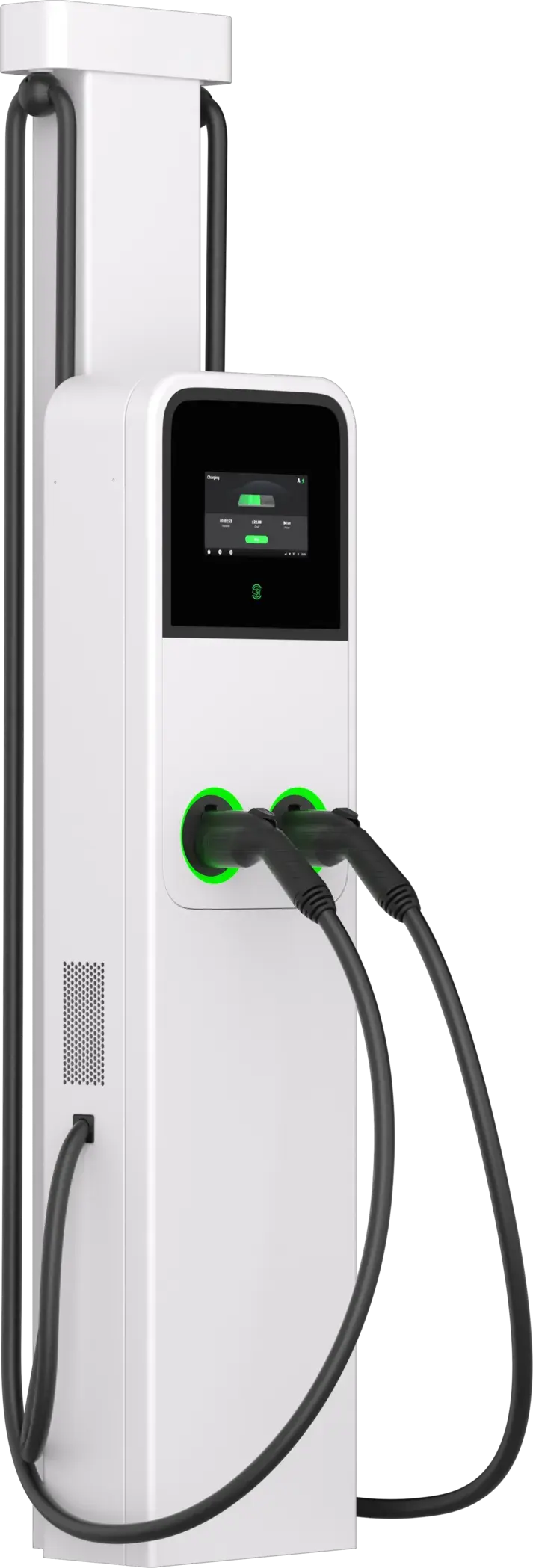

  • Built-in advertising platform.
    Profitable

    Built-in advertising platform.

    The 8" HD touchscreen runs photos, video, or sponsor placements. Stack ad revenue with energy, time, and idle fees for a full revenue model.

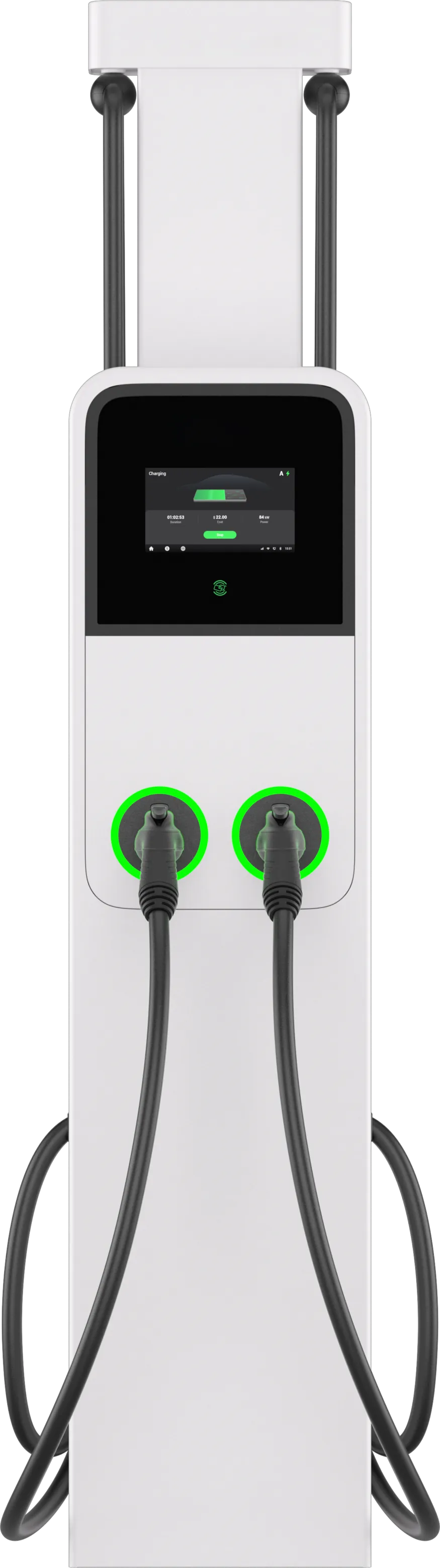

The product

One charger. Two ports. Maximum throughput.

Configure as wall-mount for tight site footprints or floor-mount for dealership and retail deployments. Add the optional Cable Management System to extend cable life in high-cycle operations.
