Solutions / AC Elite Business

AC Elite
Business.

Commercial-grade Level 2 charging. 12 kW at 50A. NEMA 4 weatherproof. Indoor or outdoor — same charger, same warranty.

Get quote Technical docs
Specifications

The system,
at a glance.

Power output
12 kW (240V AC × 50A)
Output amperage
Adjustable 16A to 50A
Connector
SAE J1772 (25 ft cable)
Enclosure rating
NEMA 4, IK10 impact-resistant
Deployment
Rated for indoor and outdoor install
Connectivity
WiFi, Bluetooth, Ethernet, 4G, CAN, RS485
12 kW maximum power output
50A adjustable amperage
9× faster than Level 1
25 ft cable length
Built for the operation

Four principles. One charger.

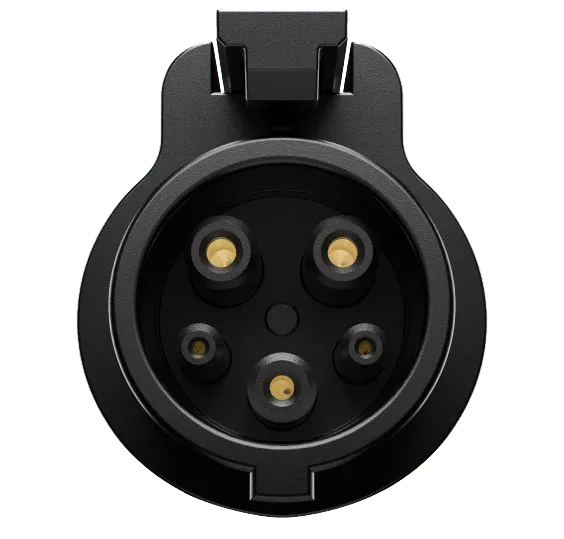

  • Works with every EV.
    Compatibility

    Works with every EV.

    Universal SAE J1772 connector serves every electric and plug-in hybrid vehicle in the fleet mix; NACS-equipped vehicles connect via adapter.

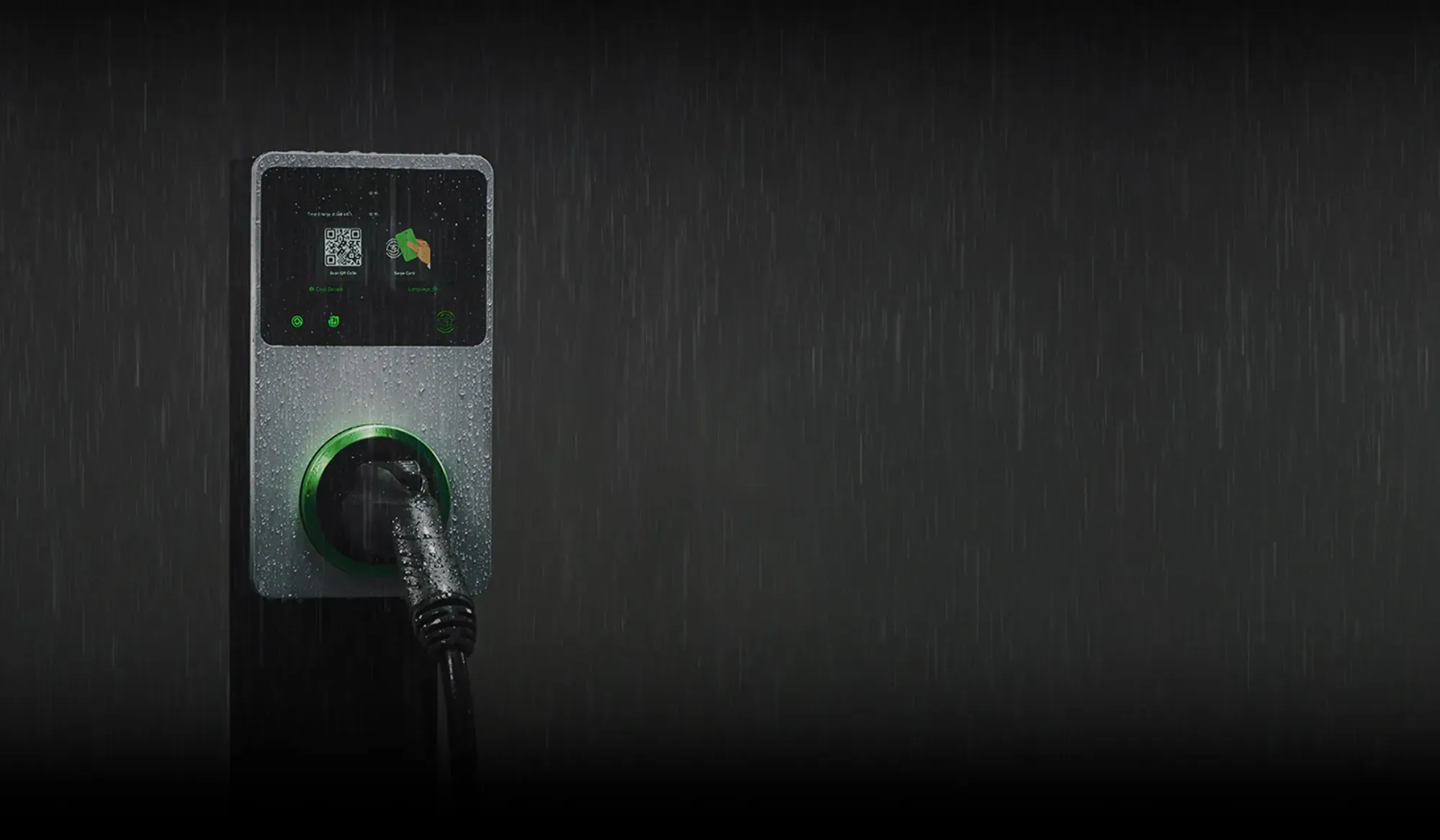

  • Indoor or outdoor. Same hardware.
    Robust

    Indoor or outdoor. Same hardware.

    NEMA 4 weatherproof enclosure with IK10 high-impact rating. One hardware build rated for both indoor and outdoor install, same warranty either way.

  • Six connection paths.
    Connectivity

    Six connection paths.

    WiFi, Bluetooth, Ethernet, CAN, RS485, 4G-ready. Configure and manage via EV-olution Cloud. Run online or offline as the site requires.

  • 9× faster than Level 1.
    Fast and effective

    9× faster than Level 1.

    Full 50A delivers 12 kW, roughly 35 miles of range per hour. Adjustable down to 16A via app or DIP switch to match site capacity.

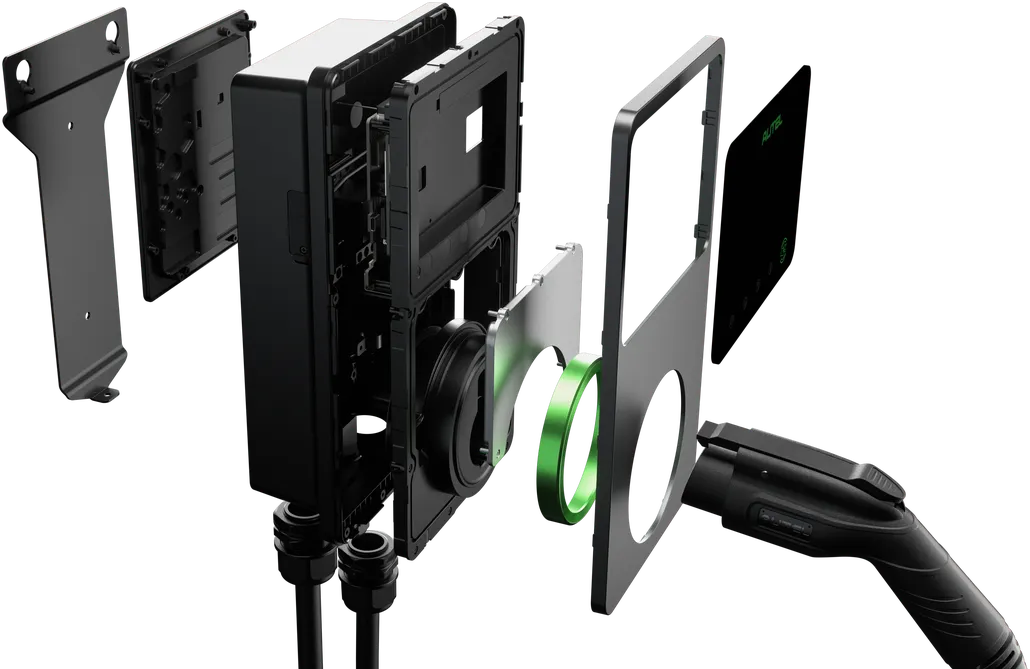

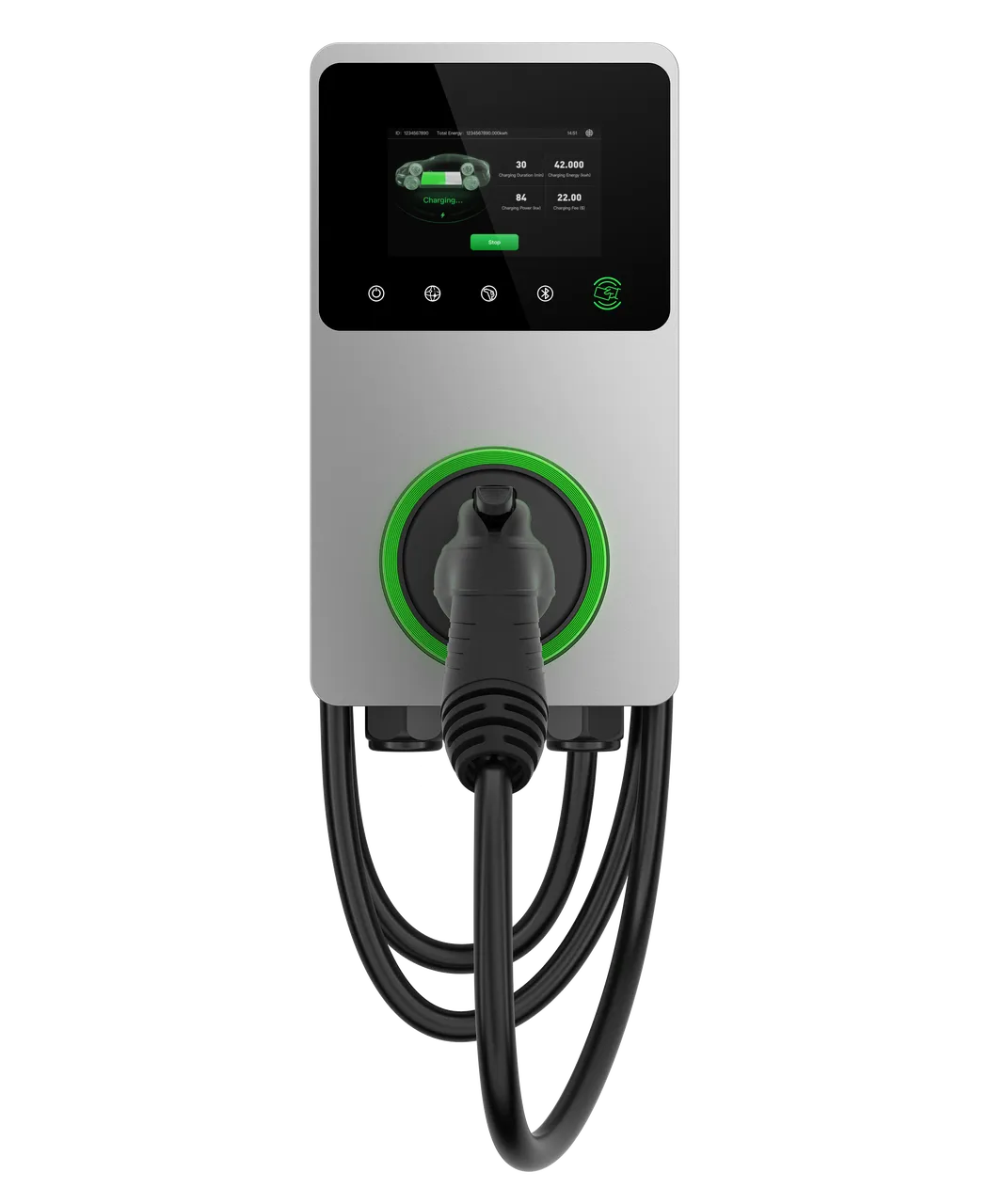

The product

Single port. Designed for the operation.

Silver enclosure with integrated cable holster. Hardwired install, indoor or outdoor, three-year limited warranty. Pairs with EV-olution Cloud for fleet and tenant management.
