Solutions / AC Pro

AC Pro
Charging.

Single-port AC charging built to stand behind. 19.2 kW, a 16-point protection system, installed in 8 minutes.

Get quote Technical docs
Specifications

The system,
at a glance.

Power output
19.2 kW (240V AC × 80A)
Output amperage
Adjustable 6A to 80A
Connector
SAE J1772 (25 ft cable)
Enclosure rating
NEMA 3S, IK10 vandal-resistant
Protection system
16-point monitoring + alerts
Certifications
UL 2231, UL 2594, CSA C22.2, Energy Star
19.2 kW maximum power output
70 mi range per hour of charging
16-pt protection system
8 min one-click install time
Built for the operation

Four principles. One charger.

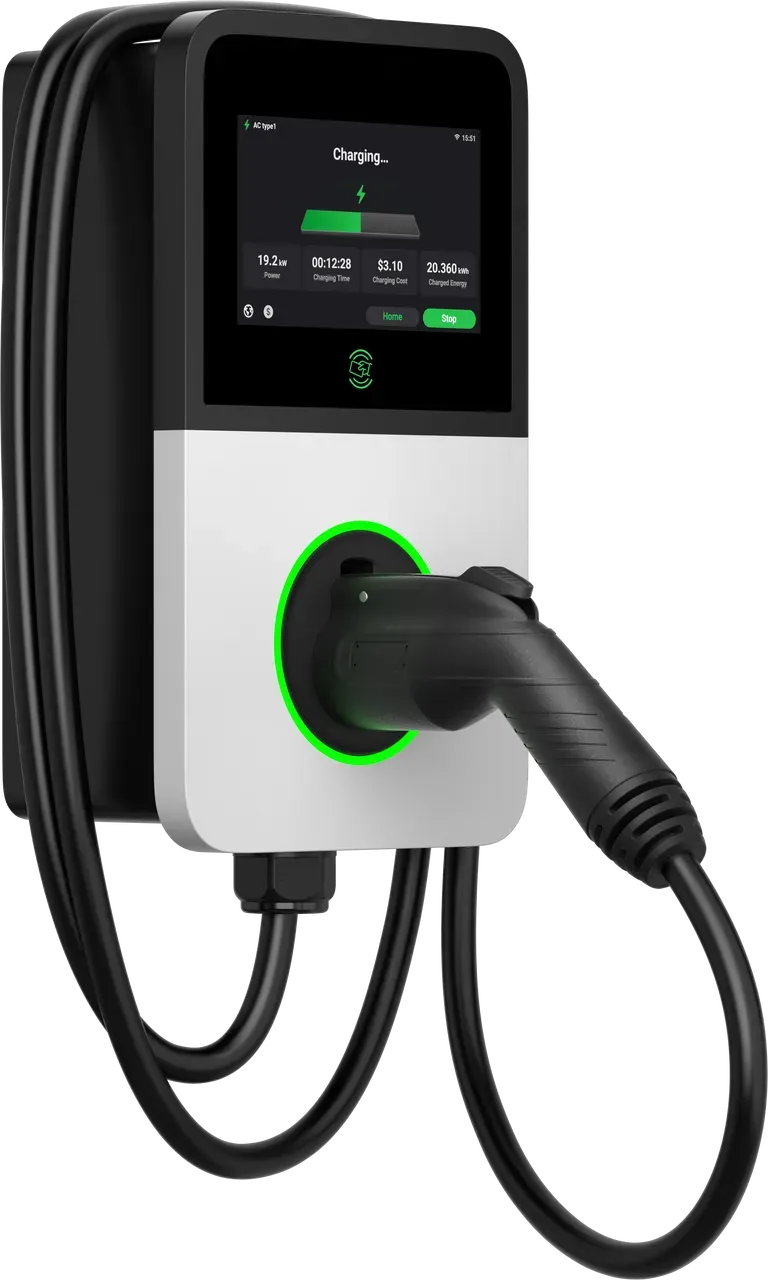

  • 19.2 kW at 80A.
    Fast charging

    19.2 kW at 80A.

    Adds 70 miles of range per hour at full 19.2 kW. Adjustable 6A to 80A via app or DIP switch to match site capacity.

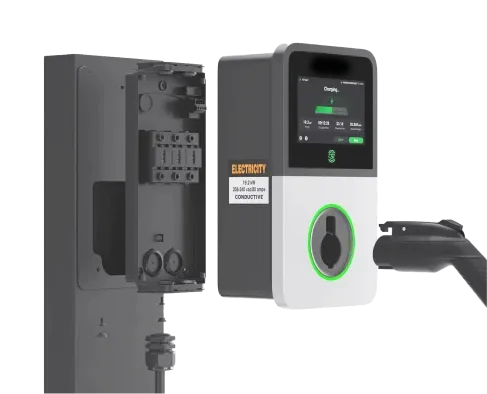

  • 16-point protection system.
    Reliable

    16-point protection system.

    Continuous monitoring of wiring connections, ground faults, current anomalies, and temperature. Three-layer protection network with surge suppression rated 10kV/5kA.

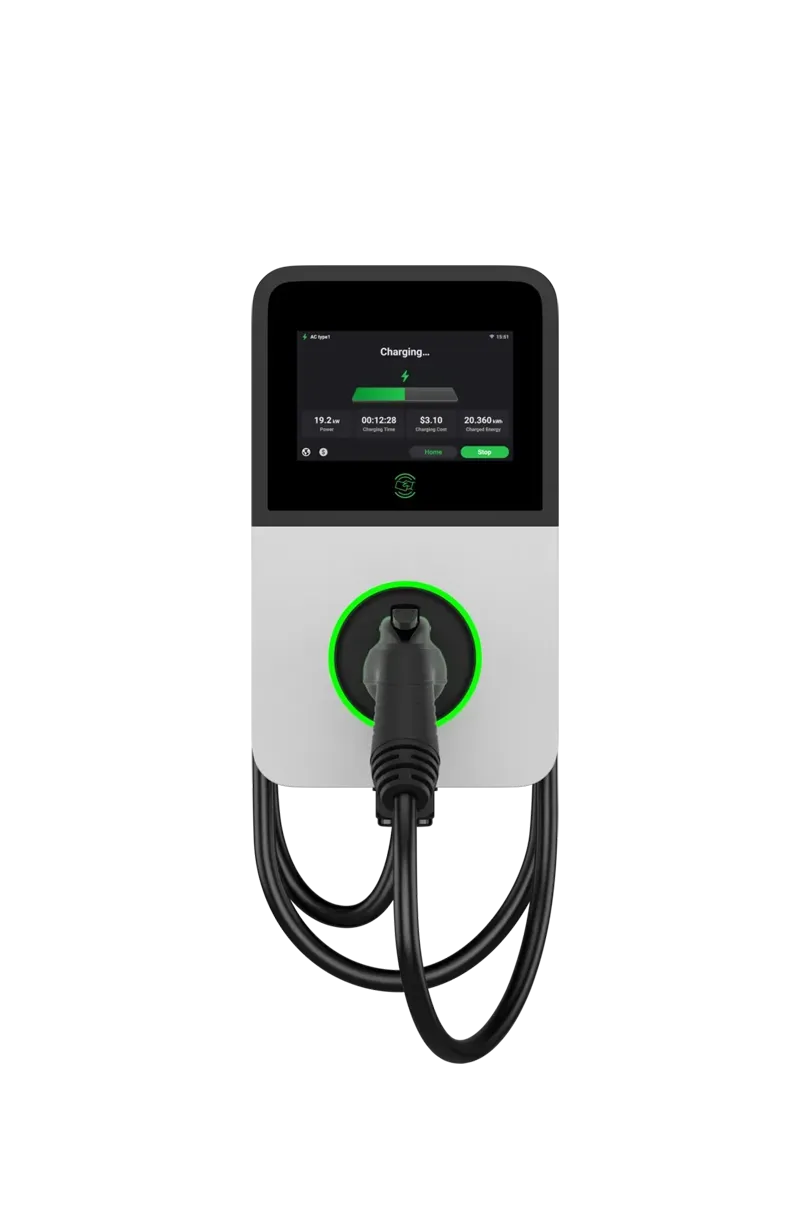

  • Dynamic Load Balancing.
    Intelligent

    Dynamic Load Balancing.

    Shares power across active chargers based on real-time demand. On-cloud or local load management for up to 200 chargers. Caps site peak demand without slowing active sessions.

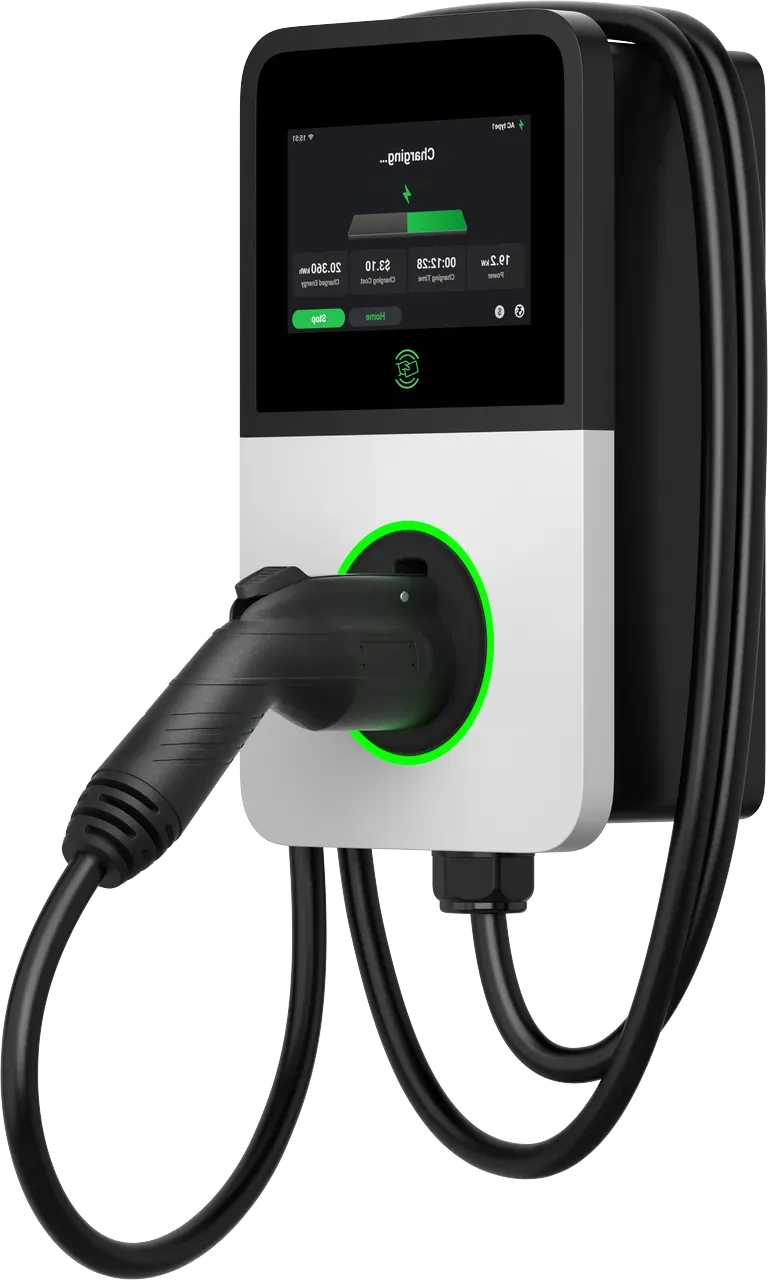

  • Built for Real Operating Conditions.
    Durable

    Built for Real Operating Conditions.

    NEMA 3S enclosure rated for rain, snow, sleet, hail, dust, sand. IK10 vandal-resistant housing. Operating range -31°F to 131°F. 10-year design service life.

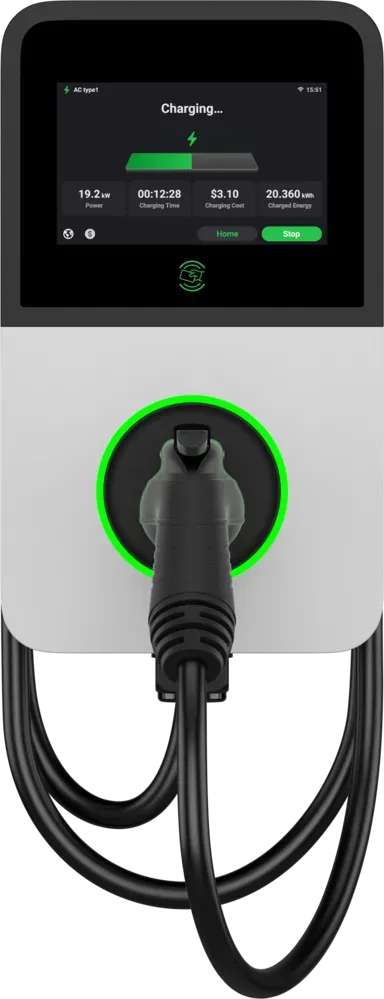

The product

Single port. Reliability you can assume.

Wall-mount for workplace sites, floor-mount on a pedestal for commercial and retail deployments. One-click snap-in cuts setup to roughly 8 minutes.
