Distributed DC
Ultra Fast Charging.
One power source. Up to 12 ports. Built for sites where uptime is the operation.
The system,
at a glance.
- Maximum output
- Up to 600 kW per Power Unit
- Charging ports
- Up to 12 simultaneous
- Connector types
- CCS1, CHAdeMO, NACS
- Power management
- Adaptive Dynamic Power Sharing
- Redundancy
- Modular, hot-swap capable
- Certifications
- UL, CSA certified
Four principles. One distributed system.
-

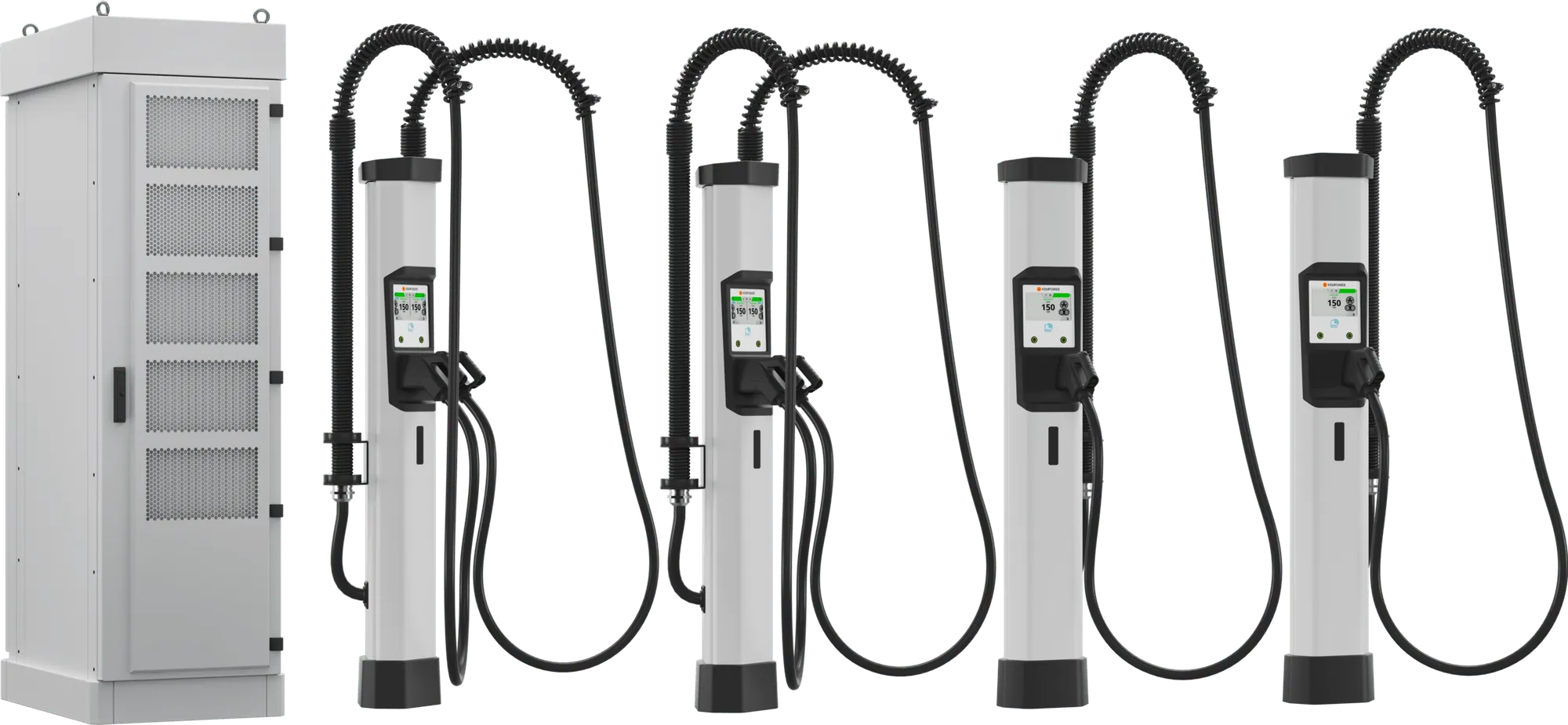

Availability Up to 12 ports from one source.
A Triple Door Power Unit feeds up to 12 charging ports from a single grid connection, covering the whole site.
-

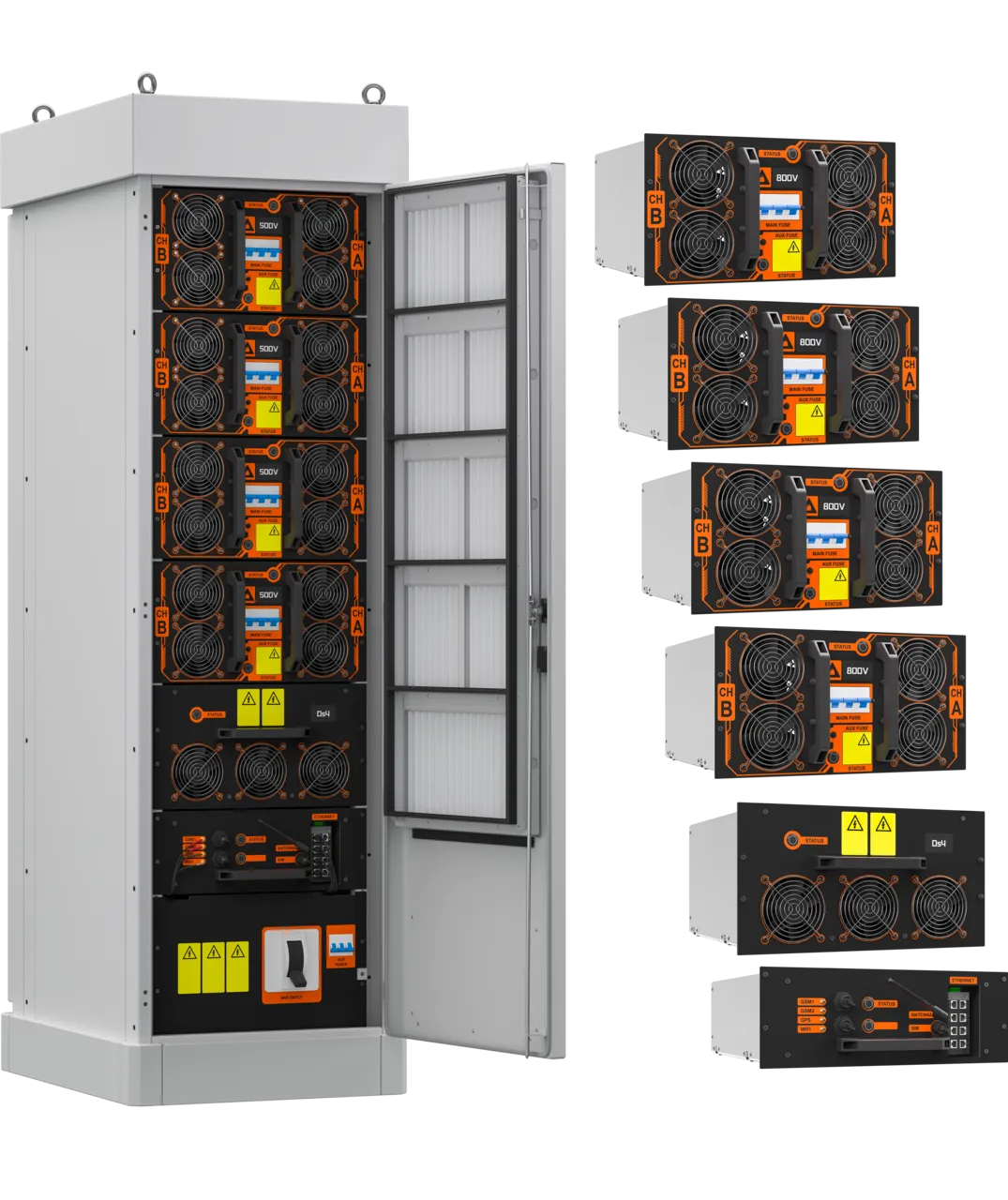

Reliability Modular by design. Online by default.
Power modules replace individually. If one fails, the rest keep charging and the site stays online. Reliability you can assume.
-

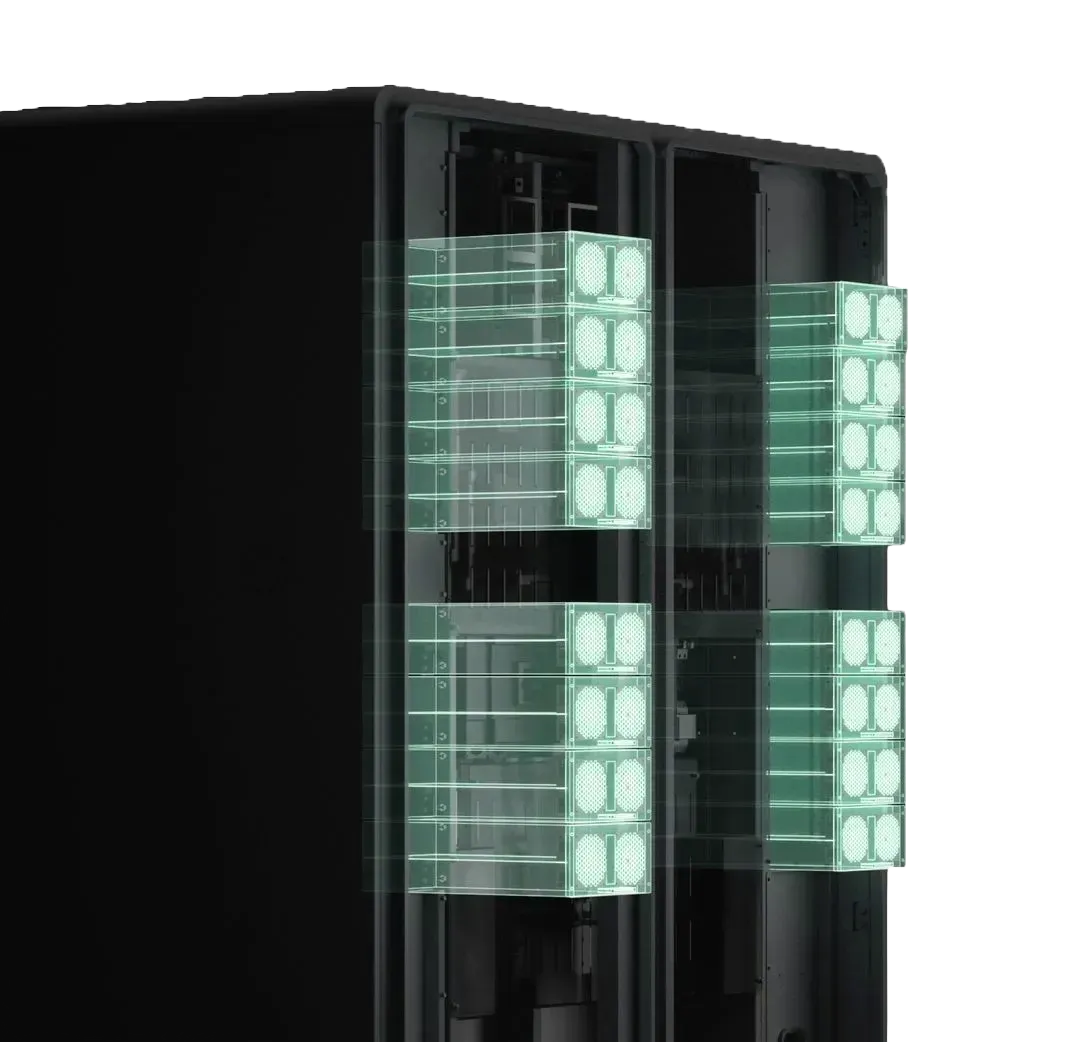

Designed for change Expands in 50 kW increments.
Start small. Add modules and Satellites as the operation grows, with no grid re-architecture required. Designed for change.
-

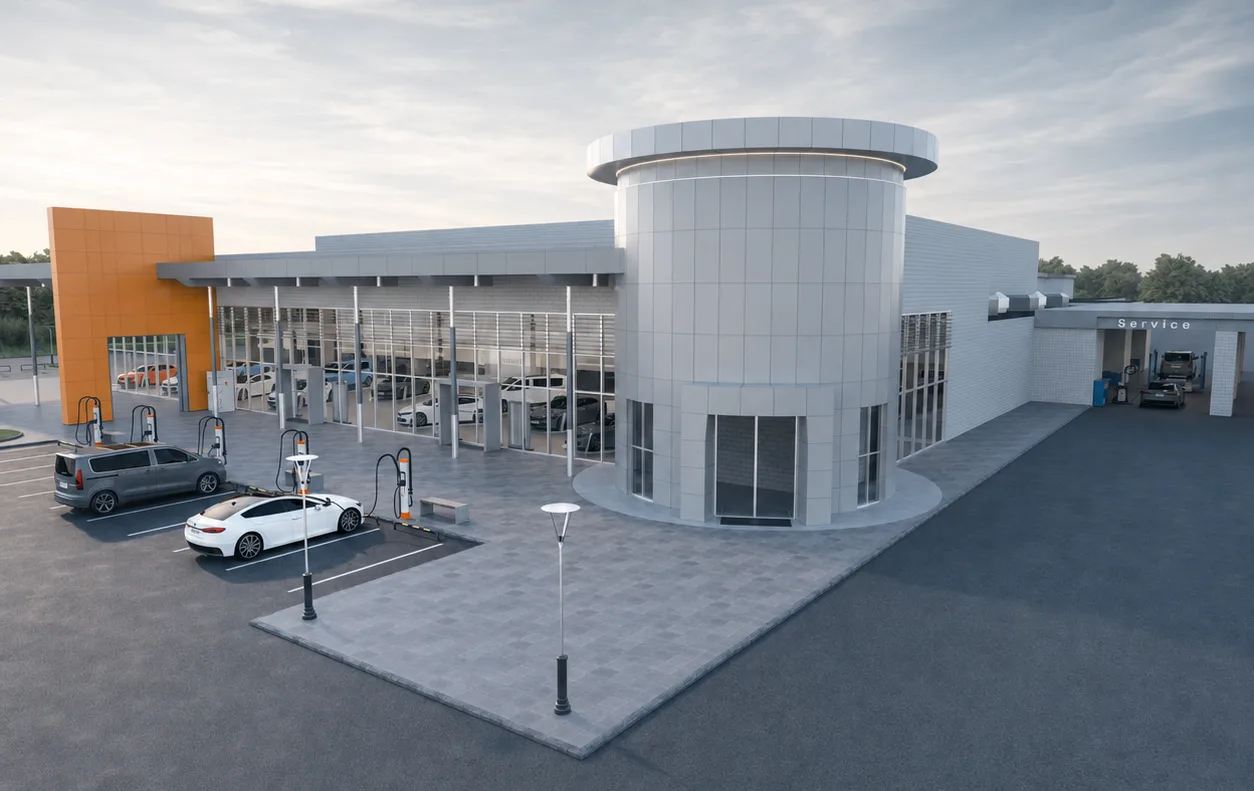

Multimodality One system, every environment.
CCS1, NACS, and CHAdeMO in one system. Weatherproof, certified for indoor and outdoor install. Built for Real Operating Conditions.
Multiple variants. One system architecture.
Each configuration uses the same Dynamic Power Sharing engine and cloud back-end. Specifications below cover Power Unit cabinets (the centralized power source) and Satellite dispensers (the charging points at each parking spot).
-
Specs and downloads →Single Door
50–200 kW · Single Door
Full output in a single-door footprint.
- Dynamic Power Sharing
- Cloud back-end monitoring
- Modular system
- Weatherproof design
- Up to 200 kW output
- Supports up to 8 charging ports
-
Specs and downloads →Dual Door
50–400 kW · Double Door
Scales to 400 kW without re-architecture.
- Dynamic Power Sharing
- Cloud back-end monitoring
- Modular system
- Weatherproof design
- Up to 400 kW output
- Supports up to 8 charging ports
- Power Units can be combined to achieve 800 kW
-
Specs and downloads →Triple Door
50–600 kW · Triple Door
Up to 600 kW from one cabinet.
- Dynamic Power Sharing
- Cloud back-end monitoring
- Modular system
- Weatherproof design
- Up to 600 kW output
- Supports up to 12 charging ports
- Power Units can be combined to achieve 1.2 MW
-
Specs and downloads →Station Charger
50–400 kW · Single or Dual door
One unit, single or dual configurations.
- Dynamic Power Sharing
- Cloud back-end monitoring
- Modular system
- Weatherproof design
- 50–400 kW output
- Can be combined with the Satellite to a max of 4 ports total
-
Specs and downloads →Single Head Satellite
200–500A Cables
Smallest DC fast charging footprint.
- Single Handle
- 7" touchscreen
- RFID / Credit Card reader
- CCS1, NACS, CHAdeMO
- Spring-loaded CMS
-
Specs and downloads →Dual Head Satellite
200–300A Cables
Two handles share one compact footprint.
- Dual Handle
- 7" touchscreen
- RFID / Credit Card reader
- CCS1, NACS, CHAdeMO
- Spring-loaded CMS
-
Specs and downloads →AT DC Ultra Fast
320–640 kW Capacity
Scales to 640 kW, designed for change.
- Dynamic Power Sharing
- Cloud back-end monitoring
- Modular system
- Weatherproof design
- Up to 640 kW output
- Supports up to 8 charging ports
-
Specs and downloads →AT Dual Satellite
Up to 650A Cables
High-output dispenser, up to 650A cables.
- Dual Handle
- 15.6" touchscreen
- RFID / Credit Card reader
- CCS1, NACS (optional)
-
View specs →Control Unit
Up to 240 kW
- Depot and off-highway charging
- IP65 stainless steel
- Wall, truss, or bollard mounting
-
Explore →Mega Satellite
Up to 1.2 MW
- MCS megawatt charging
- 1.2 MW (MCS) or 560 kW (CCS)
- Built for electric trucks and buses
-
Explore →Mega Satellite Flex
Up to 1.2 MW
- Dual-standard CCS + MCS
- CCS up to 560 kW, MCS up to 1.2 MW
- Available July 2026
