AC Products / AC Single

AC Single
Charger.

Single-port AC charging for residential and small commercial. 12 kW dual-output flexibility, adjustable from 6A to 50A. ISO 15118-ready. NEMA 3S outdoor enclosure.

Get quote Technical docs
Specifications

The system,
at a glance.

Charging mode
Mode 3
Maximum output
12 kW (240V AC × 50A)
Adjustable amperage
6–50A via mobile app; 16/24/32/40/48/50A via DIP switch
Input/output voltage
208/240V AC, 50/60 Hz (HiLeg Delta supported)
Connector type
SAE J1772 or NACS
Cable length
7.5 m (25 ft) or 1.8 m (6 ft)
Ground fault detection
20 mA CCID
Protection
Overcurrent, overvoltage, undervoltage, integrated surge
Card reader
ISO 15693, ISO 14443 A/B, ISO 18092
Metering accuracy
±1%, NTEP/CTEP certified
Vehicle communication
ISO 15118-2/20
Authentication
Plug&Charge, Autocharge, RFID, third-party apps
Enclosure rating
NEMA 3S, IK10
Operating temperature
–35°C to +50°C (derates above 45°C)
Mounting
Wall or floor (ADA pedestal)
Dimensions
315 × 170 × 117 mm (12.4 × 6.7 × 4.6 in)
Display
5" 800×480 touchscreen + LEDs
Connectivity
4G, Wi-Fi, Ethernet, RS485, Wisun
Protocols
OCPP 1.6J, OCPP 2.0.1
Cloud platform
EV-olution Cloud
Safety standards
UL 2594, UL 2231-1/2, UL 1998, CSA C22.2 No.280
Codes
FCC Part 15 Class B, ENERGY STAR, NEC Article 625
Warranty
5 years (charger body), 1 year (cable + connector)
12 kW maximum output
6–50A adjustable amperage
NEMA 3S IK10 outdoor rated
5 yrs manufacturer warranty
Built for the operation

Three principles. One charger.

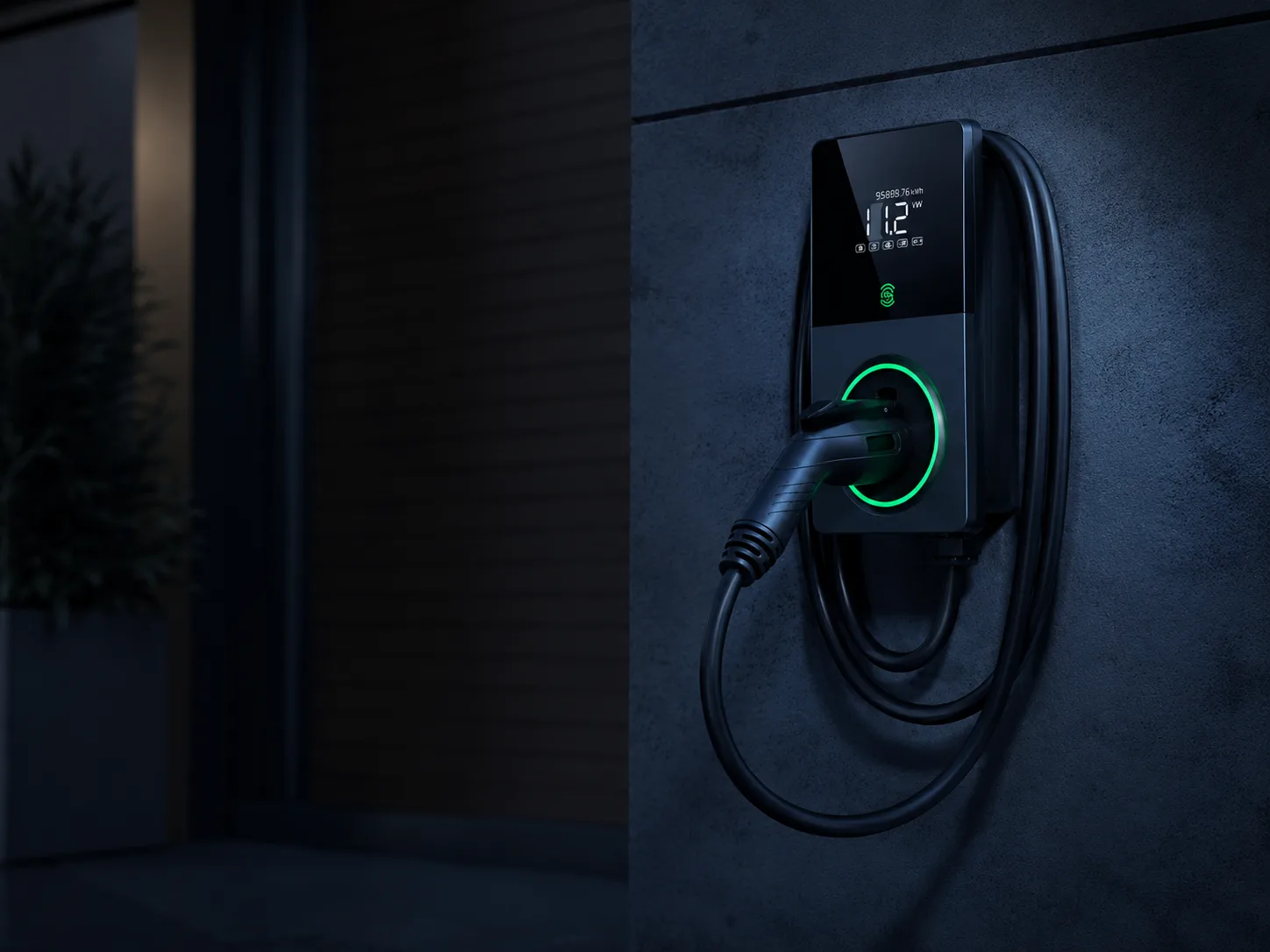

  • Tune to the site, not the other way around.
    Flexible amperage

    Tune to the site, not the other way around.

    Adjustable 6A to 50A via mobile app, or 16/24/32/40/48/50A via hardware DIP switch. One unit covers a wide range of residential and small commercial install scenarios.

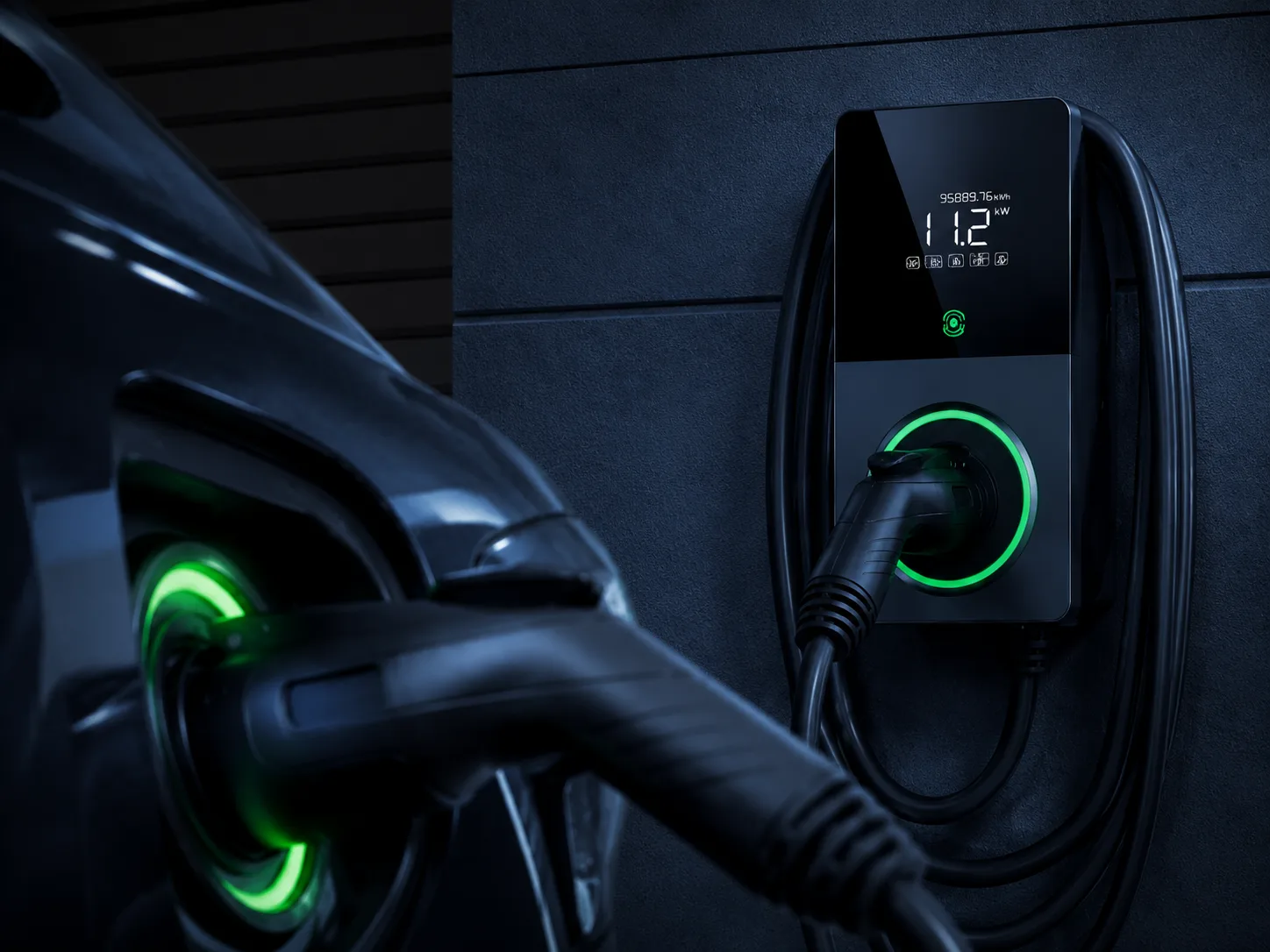

  • ISO 15118-2/20 and OCPP 1.6J/2.0.1.
    Future-ready protocol

    ISO 15118-2/20 and OCPP 1.6J/2.0.1.

    Plug&Charge, Autocharge, RFID, and third-party app authentication. Cloud-managed with OTA firmware updates.

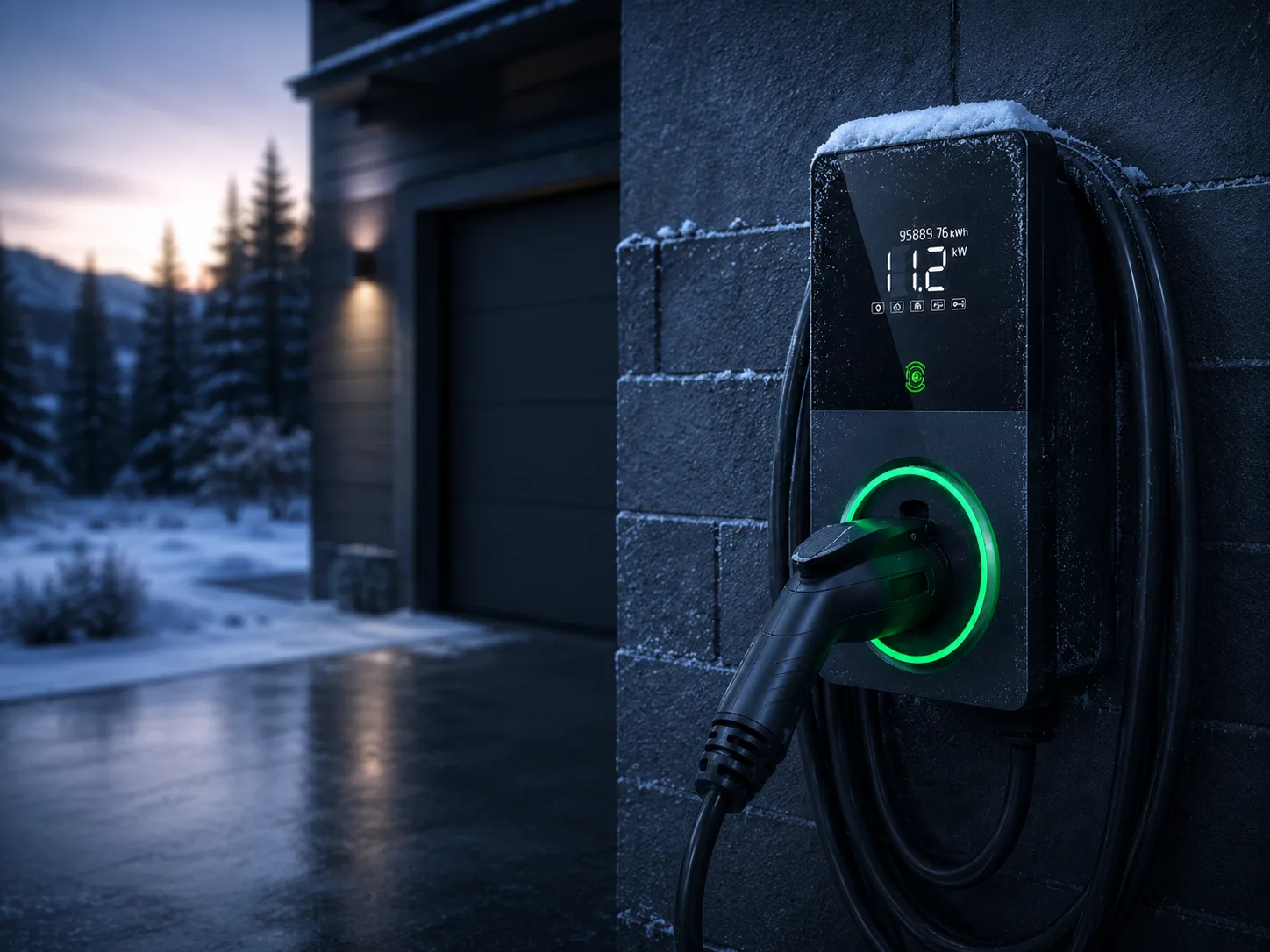

  • NEMA 3S enclosure, IK10 impact resistance.
    Built for outdoor

    NEMA 3S enclosure, IK10 impact resistance.

    Operates from –35°C to +50°C. Wall or floor (ADA-compliant pedestal) mounting. 5-year warranty on the charger body.

The product

Single port. Residential and small commercial.

Compact wall-mount or ADA-compliant pedestal. Hardwired install, indoor or outdoor, five-year warranty on the charger body. Managed via EV-olution Cloud.

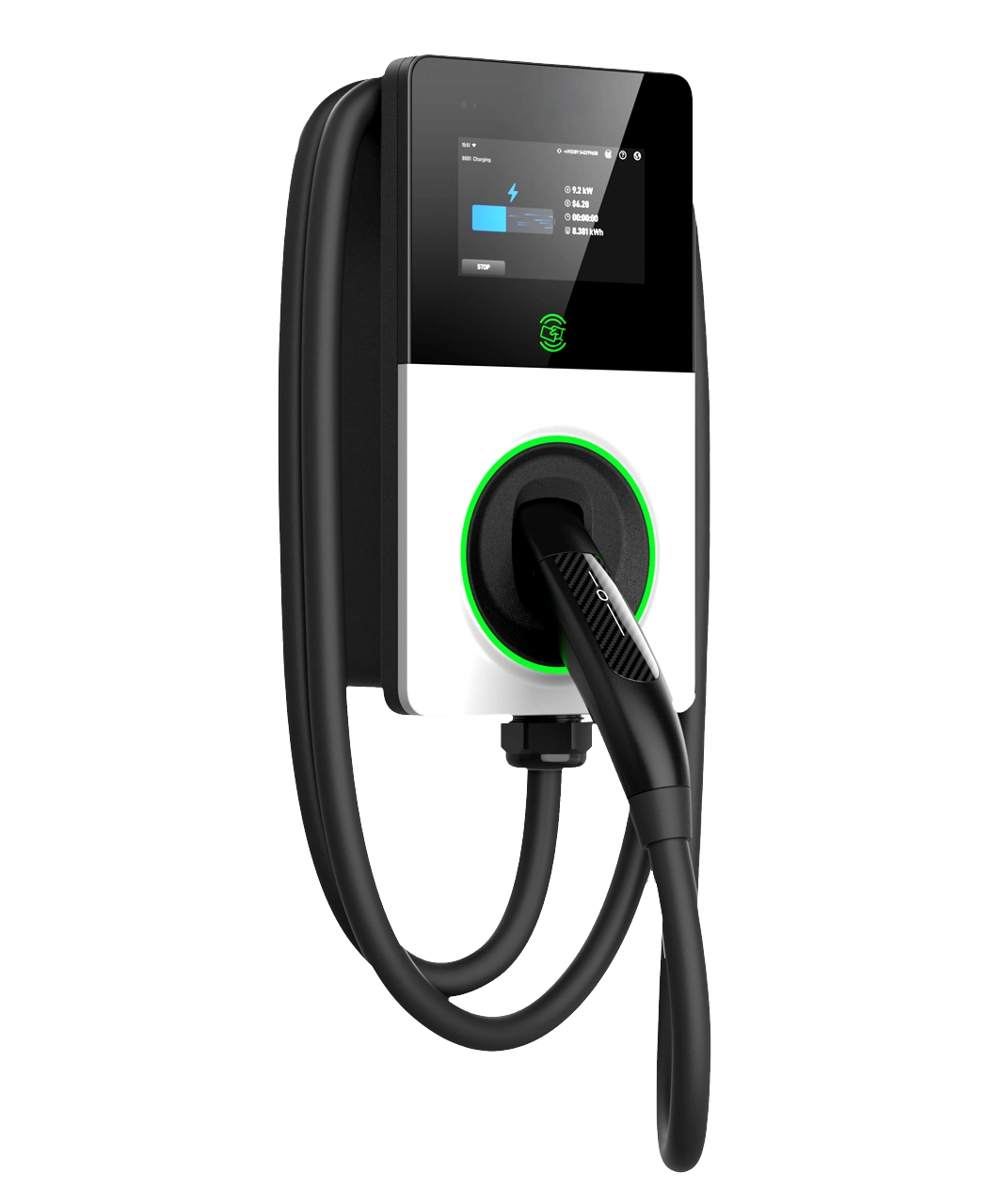

  • AC Single Charger

    AC Single Charger

    12 kW · Single port · EV-olution

    Single-port AC for residential and small commercial.

    • 12 kW max (240V AC × 50A)
    • Adjustable 6A to 50A via app or DIP
    • SAE J1772 or NACS connector
    • 5" touchscreen + LED status
    • Wall-mount or ADA pedestal
    • ISO 15118-2/20 Plug & Charge
    View specs →
