DC Fast Charging
Products.

Three MaxiCharger models cover the full demand curve — from 40 kW entry-level dual-port to 480 kW all-in-one with AI-driven throughput. Same cloud platform, same install practices.

Power range
40 kW to 480 kW
Output voltage
150–1,000 VDC
Connectors
CCS1, CHAdeMO, NACS
Ports per unit
1 to 4 simultaneous
Cable options
18 ft / 25 ft, air or liquid cooled
Certifications
UL 2202, UL 2231, CSA, FCC, ISO 15118
Get quote Compare the line
DC Fast Charging product lineup

Three models — Compact, Fast, and DH480

Designed upstream

Four things the line solves for.

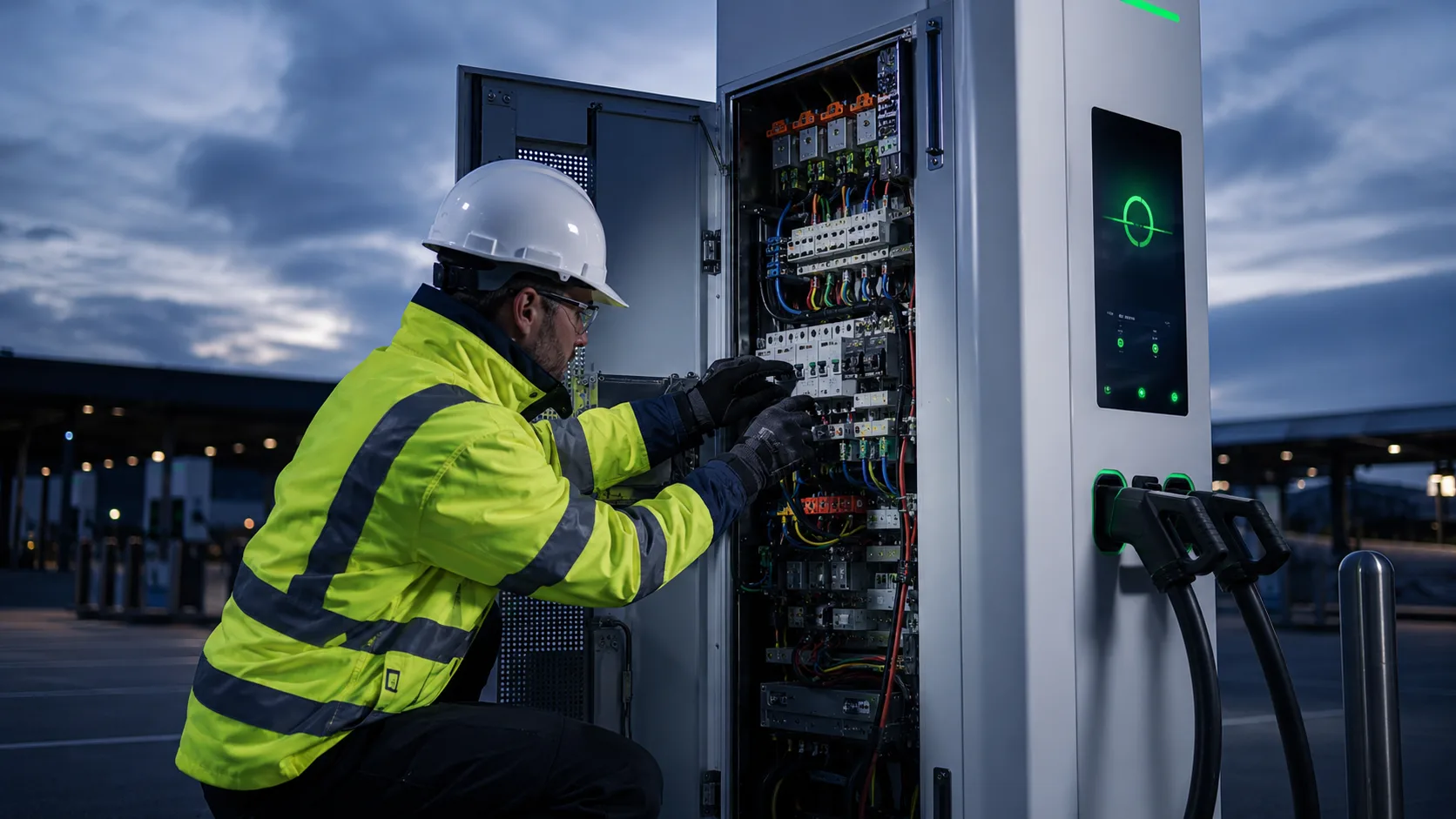

Fast deployment

Built for fast deployment.

Pedestal, wall, or pad-mount. The one-piece design and OCPP-compliant cloud cut commissioning time and install cost. DC Compact has the smallest footprint in the line.

3 ways pedestal, wall, or pad-mount

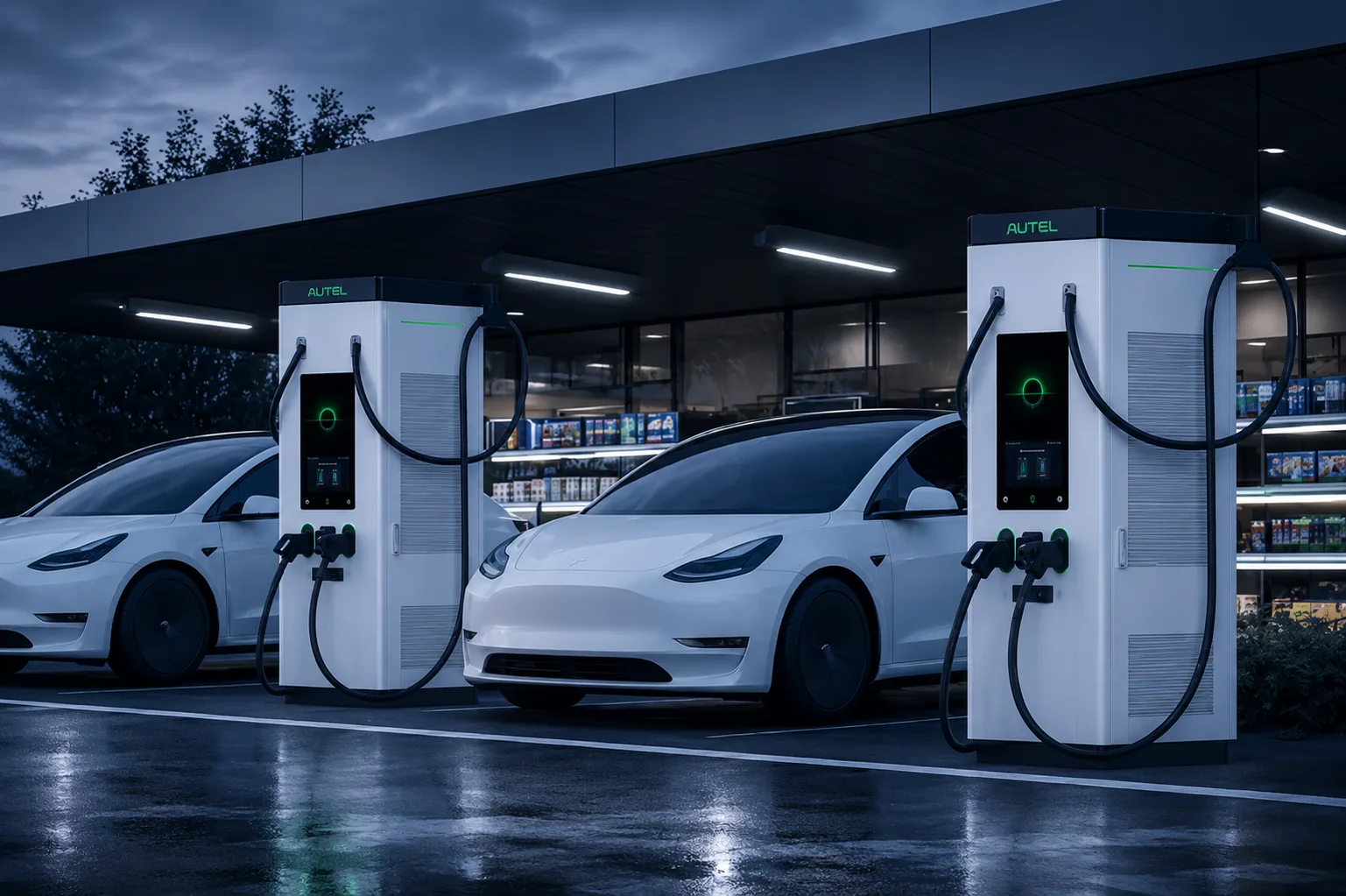

Scales by site

From 40 kW to 480 kW.

DC Compact for entry-level dealer and depot use. DC Fast for modular site growth — add power modules in 20 kW increments. DH480 for high-throughput operations. Same software, same install practices across the line.

20 kW expansion granularity

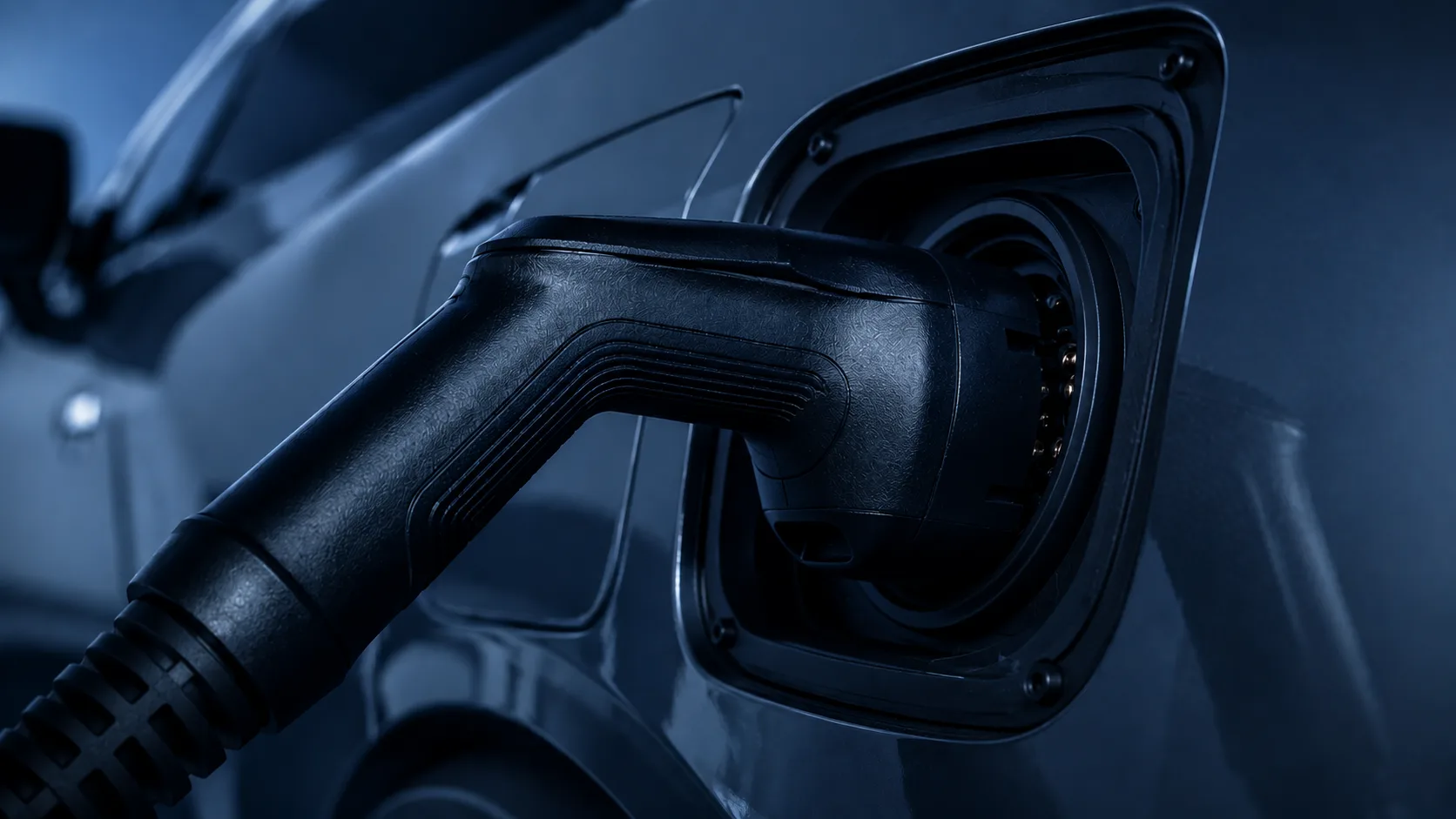

AI-driven throughput

DH480 recognizes every EV.

The DH480 uses AI vehicle recognition and predictive charging curves per battery profile. Dynamic Load Balancing delivers 99%+ charging success and 98%+ uptime.

99%+ charging success rate

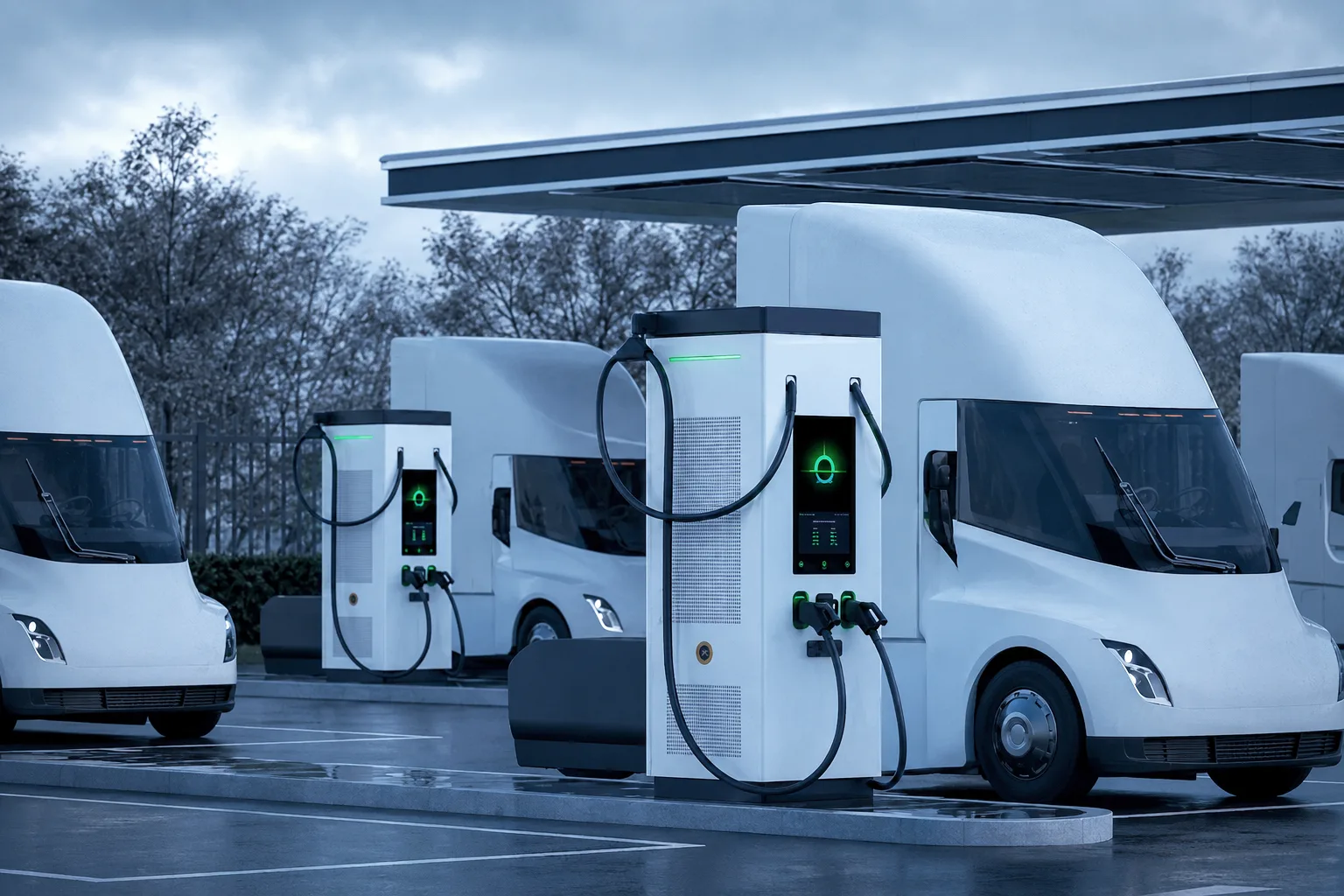

Operating envelope

Built for Real Operating Conditions.

NEMA 3R/3S enclosures. IK10 vandal-resistant screens. Tested for rain, snow, and dust. Rated for indoor and outdoor install — same hardware, same warranty.

NEMA 3R/3S outdoor-rated enclosure
Built for fast deployment.
From 40 kW to 480 kW.
DH480 recognizes every EV.
Built for Real Operating Conditions.
The line

Three models. One platform.

Pick by power demand, site footprint, and throughput required. Same cloud back-end, same OCPP compliance, same service network across all three.

DC Compact
DC Compact 40 kW
DC Fast
DC Fast 60–240 kW
DH480
DH480 320–480 kW
Power range
40 kW dual-port
60–240 kW (20 kW increments)
320 / 400 / 480 kW factory configs
Connectors
CCS1 + CHAdeMO (NACS opt.)
2×CCS1 or CCS1+CHAdeMO/NACS
CCS1 + NACS (up to 4 ports)
Display
21.5" Android touchscreen
27" advertising touchscreen
8" / 15.6" / 27" options
Cable
18 ft standard, 25 ft optional
18 ft or 25 ft
Air or liquid-cooled to 650A
Mounting
Pedestal, wall, or mobile
Pad-mount, NEMA 3R / IP54
Pad-mount, full-modular
Best for
Dealerships, depot pilots, retail with single-stall demand
Fleet depots, dealership service lanes, growing retail sites
High-throughput depots, highway service, multi-vehicle sites
Documentation

Specs, drawings, datasheets.

Other systems

Related products.

Standalone DC isn't the only way to deliver fast charging. Explore the rest of the EV-olution lineup for distributed, movable, and AC options.
