Solutions / DC Ultra Fast / Products

DC Ultra Fast
Products.

Three products in the Distributed DC family. Station Charger combines power and dispenser in one cabinet. Satellite separates them for flexible deployment. AT HiPower delivers up to 640 kW for highway-grade sites.

Power range
50 kW to 640 kW per system
Charging points
Up to 12 per system
Connectors
CCS1, CHAdeMO, NACS
Power management
Dynamic across all outlets
Architecture
All-in-one or distributed
Hardware
EV-olution
Get quote Compare the line

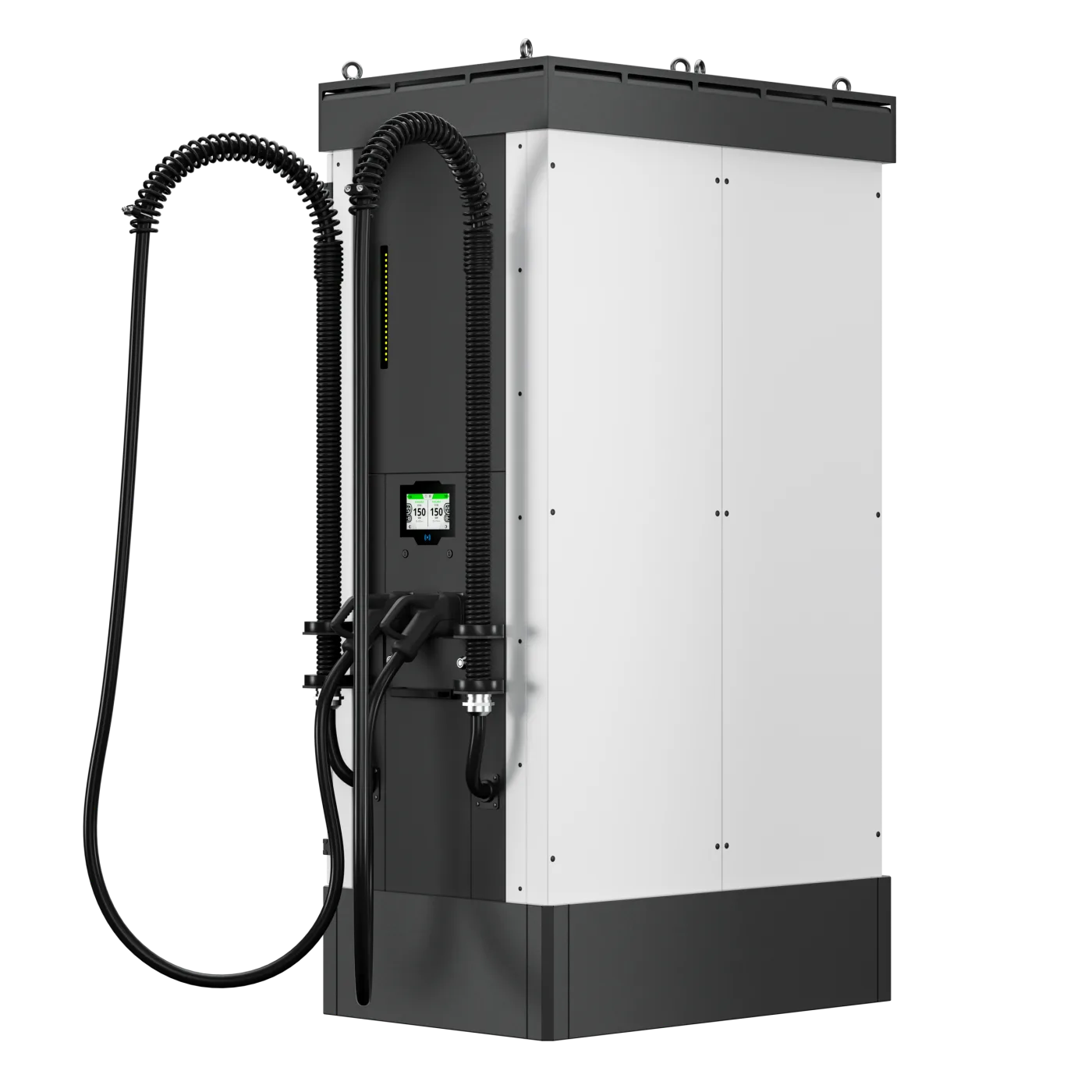

DC Ultra Fast Station Charger
Designed upstream

Four things the line solves for.

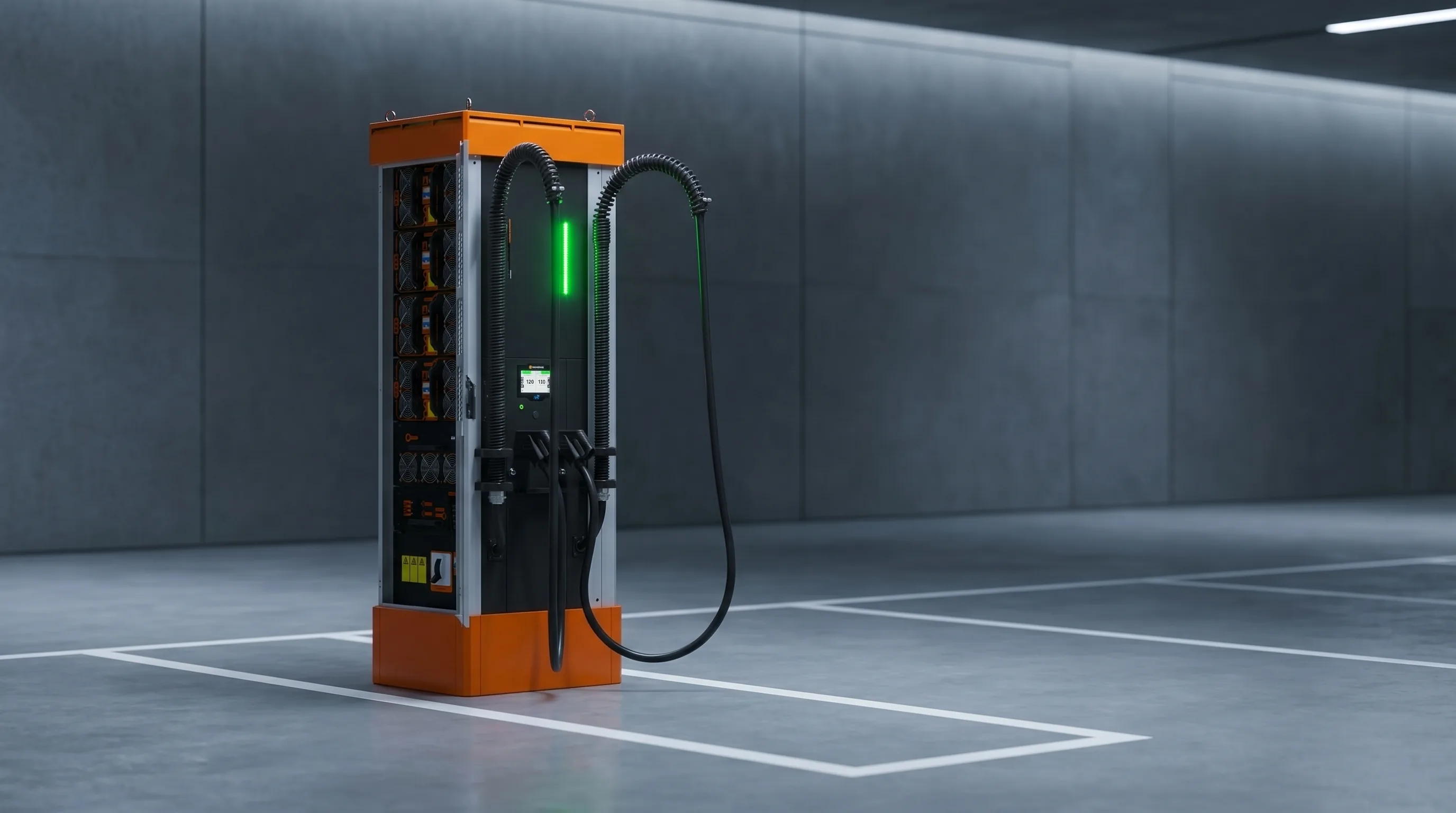

All-in-one or distributed

Pick the architecture that fits the site.

Station Charger combines power source and dispenser in one cabinet where space is tight. Satellite dispensers separate them for flexible stall placement.

Two paths system architectures

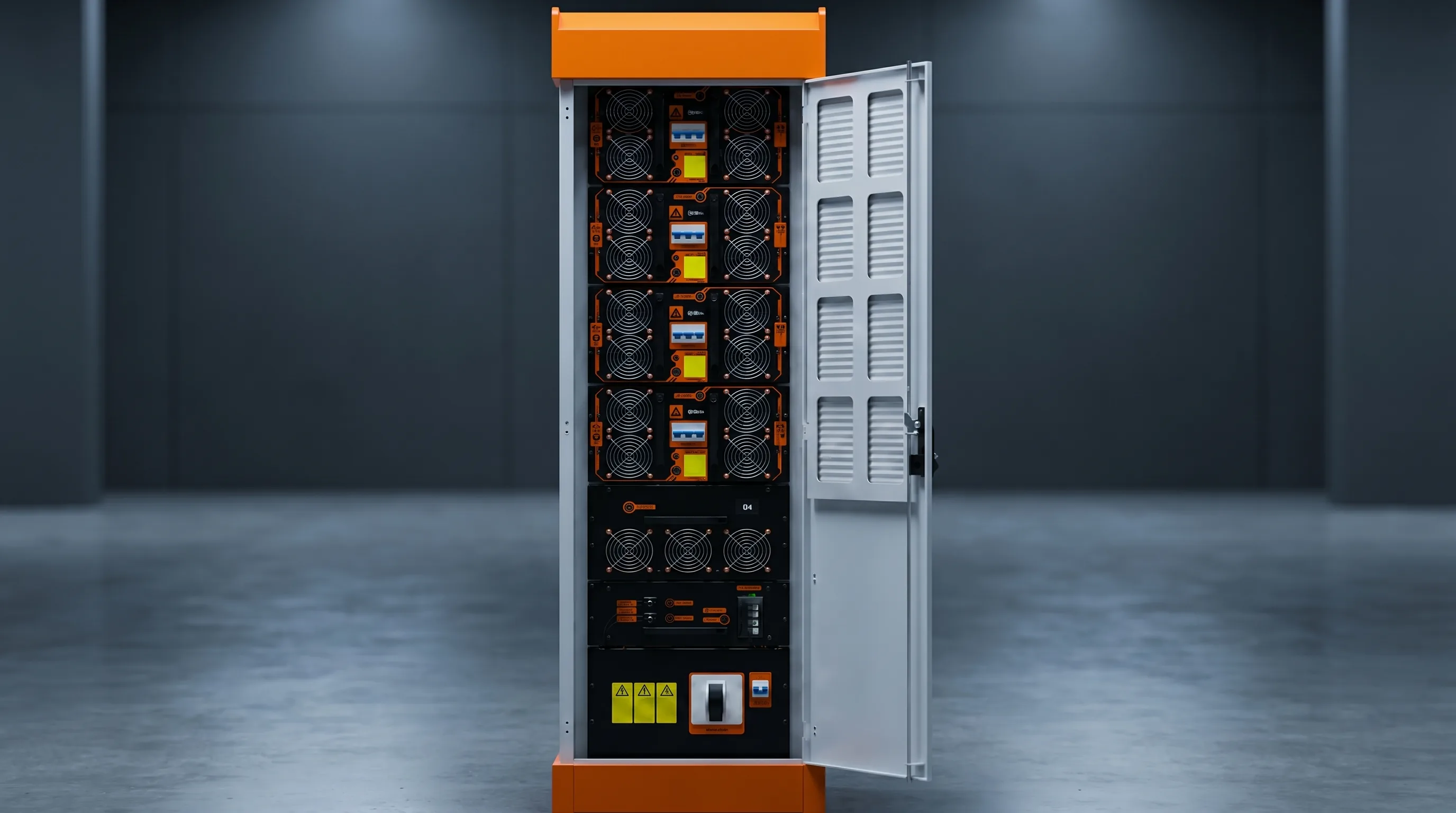

Dynamic power management

Power routes where it's needed.

On-demand power routing splits the cabinet's full capacity across active charging sessions. Lower stranded capacity, less peak demand cost, maximum power to every vehicle that needs it.

Dynamic on-demand routing

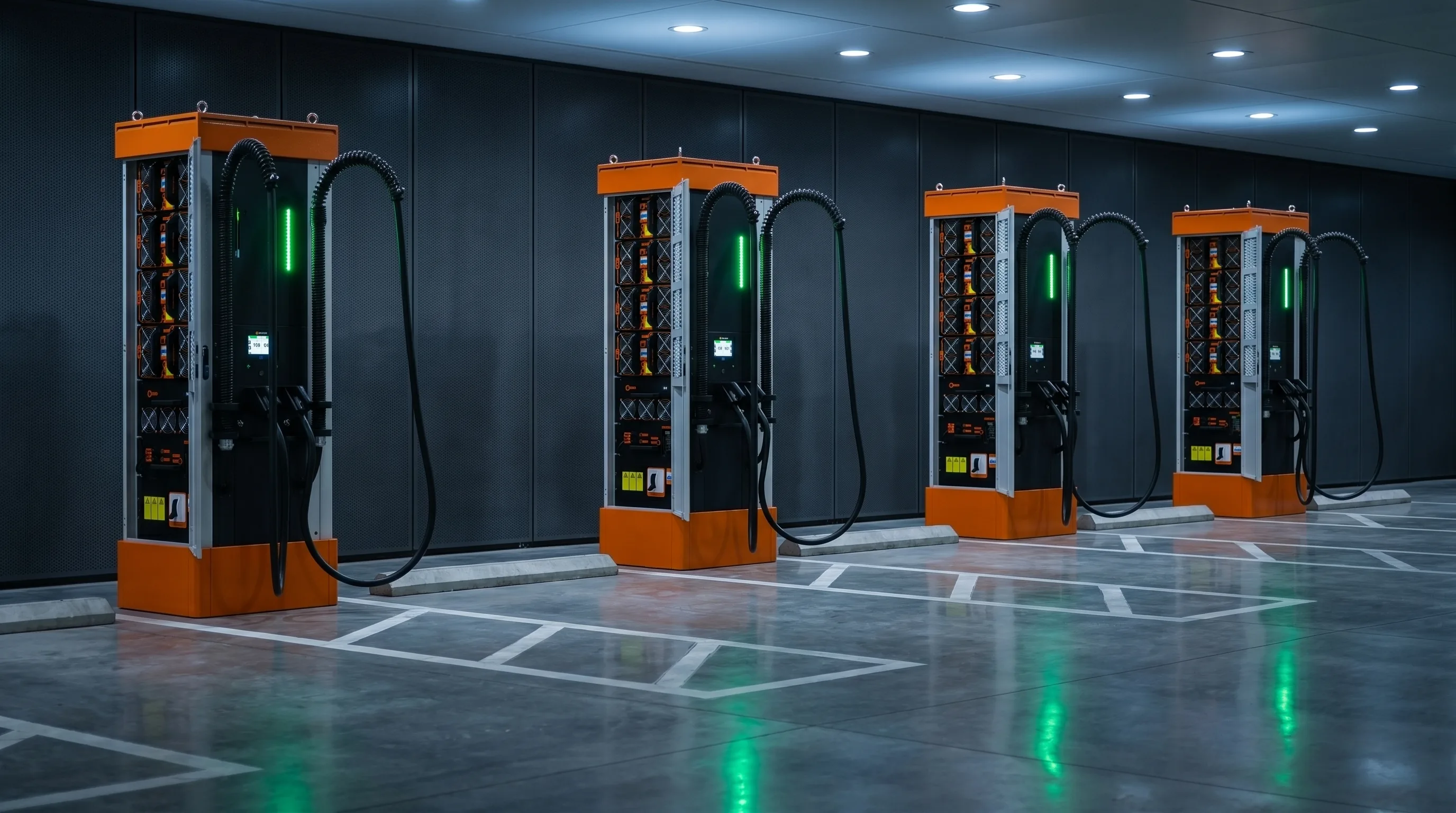

Scalable architecture

Add satellites, add cabinets.

Start with one cabinet and one or two dispensers. Add satellites as demand grows, up to 12 per system. A second cabinet doubles power.

12 ports per system

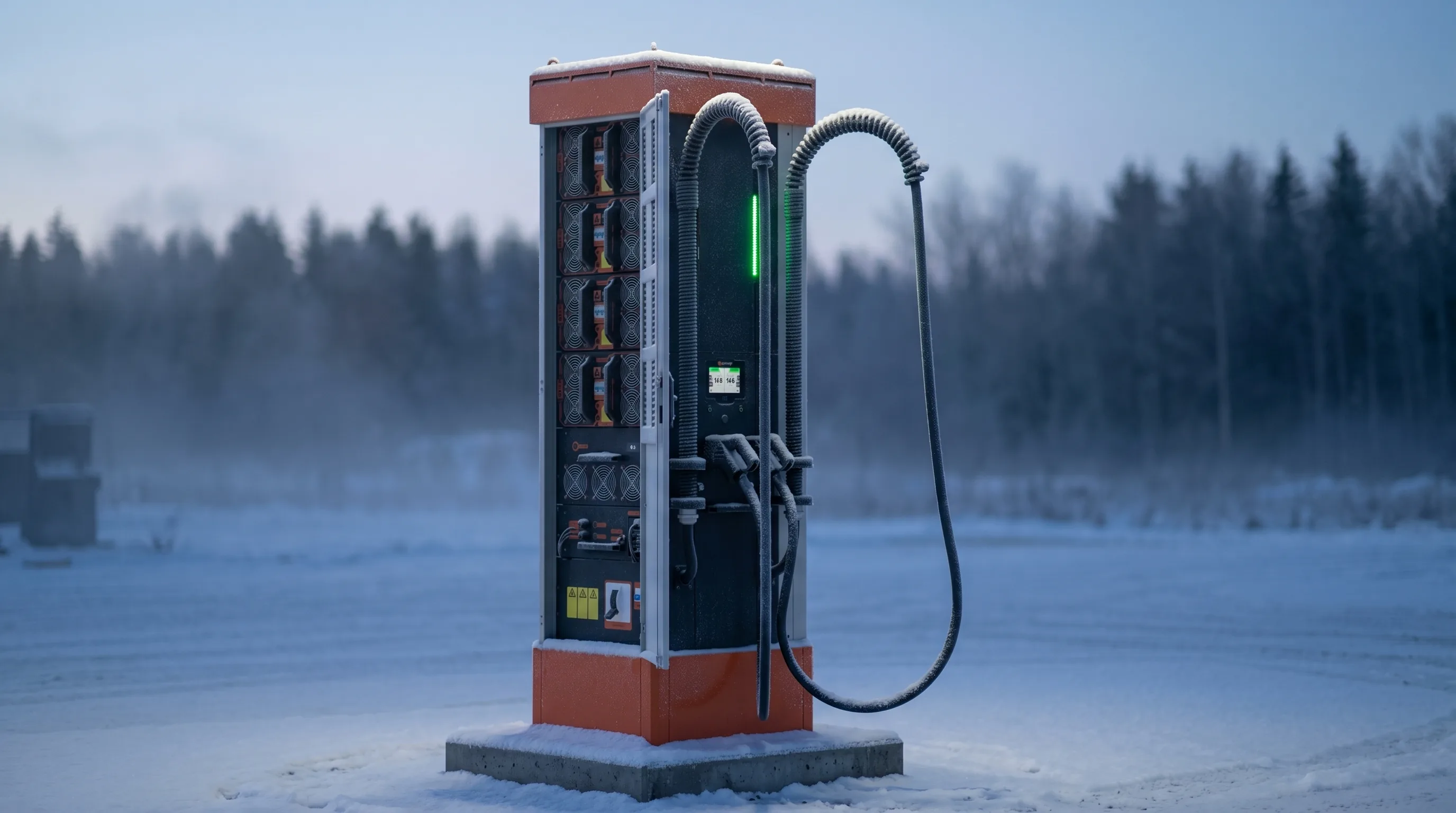

Built for real conditions

Indoor or outdoor. Same hardware.

Weatherproof enclosures with specially coated electronics. Rated for indoor and outdoor deployment. Tested for rain, snow, and dust. Built for depot operations that run 24/7 in any weather.

Indoor/outdoor rated deployment
Pick the architecture that fits the site.
Power routes where it's needed.
Add satellites, add cabinets.
Indoor or outdoor. Same hardware.
The line

Three products. One family.

Same EV-olution Cloud back-end, same install practices, same service network. Pick by architecture (all-in-one vs distributed) and power tier required.

Station Charger
Station Charger Single / Dual Door
Satellite
Satellite Single / Dual Head
Power Unit
Power Unit Single / Dual / Triple Door
Architecture
All-in-one (Power + Dispenser)
Dispenser (fed by Power Unit)
Distributed (Power Cabinet + Dispensers)
Power range
50–400 kW (single or double cabinet)
Up to 600 kW from Power Unit
50–600 kW per cabinet (combinable to 1.2 MW)
Outlets
1–2 integrated, +2 external supported
1–2 per Satellite, up to 12 per system
Up to 12 charging ports
Connectors
CCS1, CHAdeMO, NACS
CCS1, CHAdeMO, NACS
CCS1, NACS (optional)
Cable
4 m or 6 m spring-supported
4 m or 6 m spring-supported
650A liquid-cooled max
Best for
Side-by-side parking, depot, retail with cable/space constraints
Flexible stall placement, parking halls, tight spaces
Highway service, fleet hubs, ultra-fast charging
Documentation

Specs, drawings, datasheets.

Other systems

Related products.

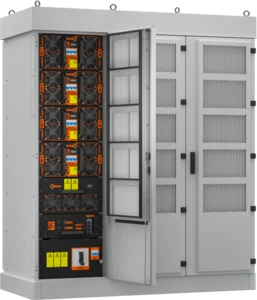

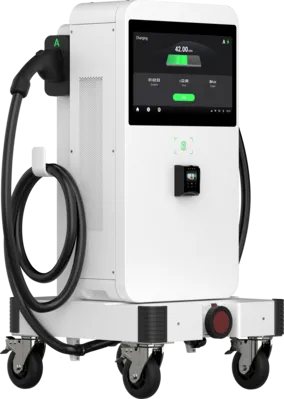

The Distributed DC family pairs naturally with the Power Unit cabinet. Or explore standalone and movable DC options for different site profiles.
